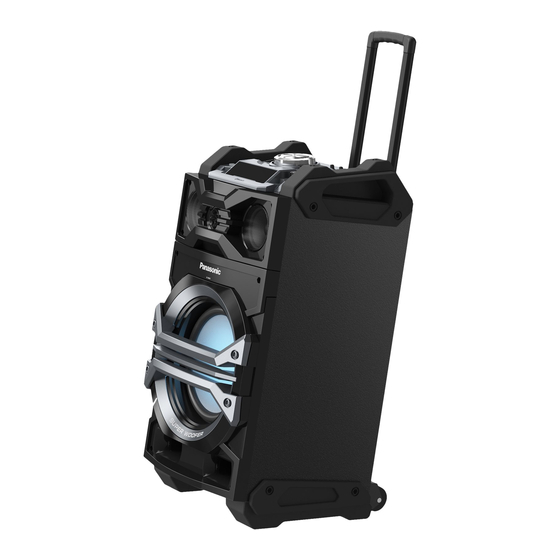

Operating Instructions 使用说明书 Active Speaker System 有源扬声器系统 Model No./ 型号 SC-CMAX5 Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. 感谢您购买本产品。 请于使用前仔细阅读操作使用说明书 , 并将说明书妥善保管,以备将来使用。 Panasonic Corporation Web Site: http://panasonic.net...
Safety precautions Battery ≥ Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the WARNING manufacturer. ≥ When disposing of the batteries, please contact your local Unit authorities or dealer and ask for the correct method of ≥...
Bluetooth SIG, Inc. and any use of such marks by correct as of August 2014. These may be subject to change. Panasonic Corporation is under license. ≥ Please use the supplied AC mains lead suitable for the Other trademarks and trade names are those of their respective household mains socket.
Unit care About Bluetooth ® To prevent speaker damage Panasonic bears no responsibility for data and/or information that is compromised ≥ When you play at high levels for a long period, it during a wireless transmission. can cause damage to the speakers and decrease the life of the speakers.
Moving this unit You can move this unit with ease by its wheels. Preparation ≥ Be sure to remove all connected devices and cables from this unit. Trolley handle Extend fully until it clicks. ≥ Take care when pulling on steep slope. ≥...
Control reference guide Rear view Remote control Top view ∫ Using the remote control Insert the battery so the terminals (i and j) match those in the remote control. Point it at the remote control signal sensor on this unit. ≥...
16 AUX IN 1 terminal Standby/on switch [Í], [Í/I] 17 AUDIO OUT terminal Press to switch the unit from on to standby 18 Enter KARAOKE mode mode or vice versa. In standby mode, the unit 19 Select vocal cancel, echo or key control is still consuming a small amount of power.
Decrease the volume and connect the USB press [OK]. device to the USB port. To pair with a device Press [USB] to select “USB A” or “USB B”. Select “SC-CMAX5” from the Bluetooth ® The corresponding USB status indicator lights green when selected. device’s Bluetooth menu.
Media playback controls Bluetooth transmission mode ® Preparation You can change the transmission mode to prioritise ≥ Turn the unit on. transmission quality or sound quality. ≥ Insert the USB device or connect the Bluetooth ® device. Preparation ≥ Press [USB] or [ ] to select the audio source.
Page 10
Select the playback mode. You can use DJ jukebox to add cross-fading effect between songs. You can also use additional Preparation features with the “Panasonic MAX Juke” app ≥ Set the DJ jukebox to “OFF”. (l below). Press [PLAY MENU] repeatedly to select Press [PLAY MENU] repeatedly to select “PLAYMODE”...
Sound and illumination Recording ([USB], [AUX]) effects You can record: ≥ MP3 tracks via [USB\A] to [USB\B]. Sound effects ≥ audio via AUX IN 1 or AUX IN 2 to [USB\B]. The following sound effects can be added to the Preparation audio output.
Page 12
≥ There will be no sound output during recording from [USB\A] to [USB\B]. Press [3, 4] to select the mode. TRK DEL Delete a single track. Panasonic cannot be held responsible on the action of consumer to record copyrighted contents ALB DEL Delete one album. which can cause copyright infringement.
Clock and Timers Turning the timer on Prepare the selected music source. Setting the clock Prepare the music source you want This is a 24-hour clock. Play timer to listen to (USB or external equipment) and set the volume. Press [SETUP] repeatedly to select “CLOCK”. Connect the USB device to [USB\B] Press [3, 4] to set the time and then press Record timer...
External equipment Using the portable audio Preparation equipment ≥ Disconnect the AC mains lead. ≥ Switch off all equipment and read the appropriate You can play music from a portable audio operating instructions. equipment. Preparation Using a VCR and DVD player ≥...
(Only when MIC 2/ jack is connected) Push [B MIC C ] to select the correct Connect the additional SC-CMAX5 using an input setting. audio cable (not supplied). Each time you push the button, the button position will On the additional SC-CMAX5 unit: switch between pushed-down and released positions.
Press [VOCAL CANCEL/ECHO/KEY-CON] repeatedly to show the current setting of vocal Bluetooth standby ® cancel, echo or key control. When “SC-CMAX5” is selected from a paired (While the current setting is shown) Bluetooth device’s Bluetooth menu, this unit will ®...
2 While pressing and holding down [Í/I] on the unit, reconnect the AC mains lead. Remote control code ≥ Keep holding down [Í/I] until “--------” appears on the display. When other Panasonic equipment responds to the 3 Release [Í/I]. supplied remote control, change the remote control code. Preparation ≥...
≥ For some built-in Bluetooth devices, you have to ® ≥ The battery is depleted or inserted incorrectly. set the audio output to “SC-CMAX5” manually. (l 6) Read the operating instructions for the device for details. The sound is interrupted.
Page 19
Messages “NO PLAY” “UNSUPPORT” The following messages or service numbers ≥ Examine the content. You can only play may appear on the unit’s display. supported format. (l 3) ≥ The files in the USB device can be corrupted. “A NO DEV” Format the USB device and try again.
Specifications ∫ GENERAL ∫ TERMINAL SECTION USB Port Power consumption 92 W USB Standard USB 2.0 full speed Power consumption in standby mode Media file format support Approx. 0.4 W MP3 (¢.mp3) (When “BLUETOOTH STANDBY” is “ON”) USB device file system Approx.
Panasonic Warranty 1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
Page 23
4 x AC 电源线 1 x 遥控器用电池 Bluetooth 文字商标和徽标是 Bluetooth SIG, Inc. 所有的注册商标, ® 1 x 遥控器 且 Panasonic Corporation 在授权下使用任何该等商标。 其他商标和商名为各自所有者的商标和商名。 (N2QAYB001000) Google Play 和 Android 是 Google Inc. 的商标。 ≥ 请勿将 AC 电源线用于其他设备。 ≥ 本使用说明书中记述的产品号码截至 2014 年 8 月为准。此后...
按 [USB] 选择 “USB A”或 “USB B” 。 从 Bluetooth 设备的 Bluetooth ® ® 菜单中选择 选中了时,相应的 USB 状态指示灯以绿色点亮。 “SC-CMAX5” 。 {. 所连接的设备的名称在显示屏上显示数秒。 ≥ 请将 USB 设备直接插入。 请勿使用任何 USB 延长电缆。 在 Bluetooth ® 设备上开始播放。 ≥ 如果结束使用,请拔下 USB 设备。 ≥ 拔下 USB 设备前,请停止 USB 操作。...
Page 39
“NO PLAY” 信息 “UNSUPPORT” 本机的显示屏上可能会出现以下信息或维修号码。 ≥ 请检查内容。 仅可以播放支持的格式。 (l 23) “A NO DEV” ≥ USB 设备中的文件可能已损坏。 请格式化 USB 设 “B NO DEV” 备后再重试。 ≥ 本机可能出了问题。 关闭本机,然后再重新开启。 ≥ USB 设备未被正确插入。 请阅读说明后再重试 (l 28)。 “NO TRACK” ≥ USB 设备中没有专辑或曲目。 “ADJUST CLOCK” ≥ 未设置时钟。 请调整时钟。 “PLAYERROR”...
Page 40
规格 ∫ 综合 ∫ 端子部分 USB 端口 92 W 功耗 USB 2.0 full speed USB 标准 待机模式下的功耗 支持的媒体文件格式 约 0.4 W MP3 (¢.mp3) ( “BLUETOOTH STANDBY”为 “ON”时) USB 设备文件系统 约 0.6 W FAT12, FAT16, FAT32 电源 USB 端口电源 500 mA (最大) AC 220 V 至...
