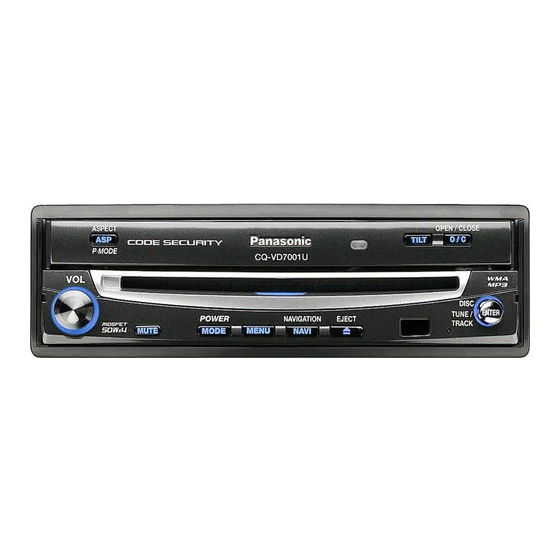

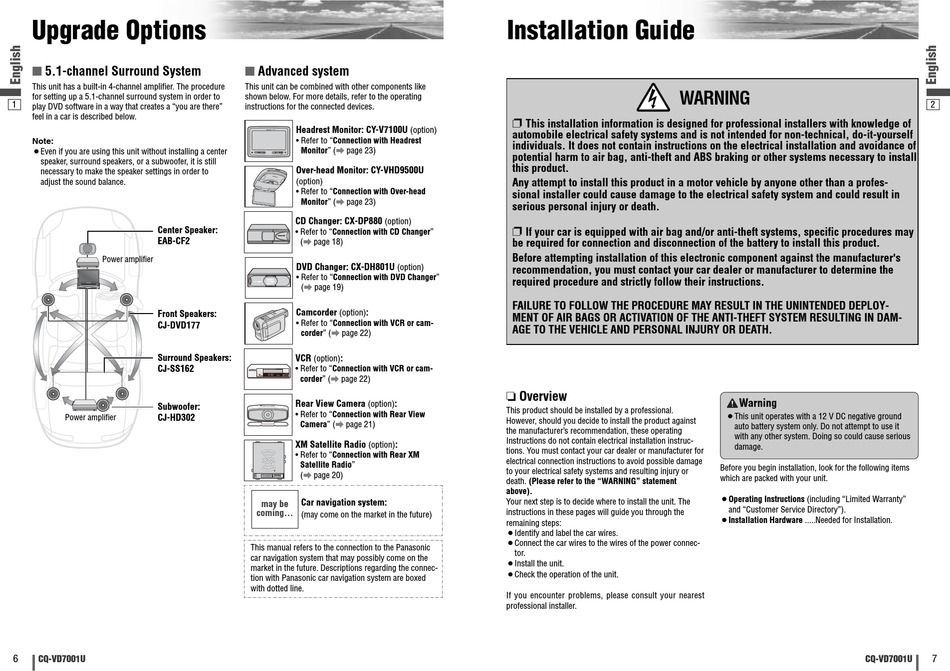

Upgrade Options
5.1-channel Surround System
This unit has a built-in 4-channel amplifier. The procedure
for setting up a 5.1-channel surround system in order to
1
play DVD software in a way that creates a "you are there"
feel in a car is described below.
Note:
¡ Even if you are using this unit without installing a center
speaker, surround speakers, or a subwoofer, it is still
necessary to make the speaker settings in order to
adjust the sound balance.
Center Speaker:
EAB-CF2
Panasonic
Power amplifier
Front Speakers:
CJ-DVD177
Surround Speakers:
CJ-SS162
Subwoofer:
Power amplifier
CJ-HD302
6
CQ-VD7001U
Advanced system
This unit can be combined with other components like
shown below. For more details, refer to the operating
instructions for the connected devices.
Headrest Monitor: CY-V7100U
(option)
CY-V7100U
• Refer to "Connection with Headrest
Monitor"
(a
page 23)
Over-head Monitor: CY-VHD9500U
(option)
• Refer to "Connection with Over-head
Monitor"
(a
page 23)
CD Changer: CX-DP880
(option)
• Refer to "Connection with CD Changer"
(a
page 18)
DVD Changer: CX-DH801U
(option)
• Refer to "Connection with DVD Changer"
(a
page 19)
Camcorder
(option)
:
• Refer to "Connection with VCR or cam-
corder"
(a
page 22)
VCR
:
(option)
• Refer to "Connection with VCR or cam-
POWER
INTELLIGENT SYSTEM
BS G-CODE
corder"
(a
page 22)
Rear View Camera
:
(option)
• Refer to "Connection with Rear View
Camera"
(a
page 21)
XM Satellite Radio
(option)
:
• Refer to "Connection with Rear XM
Satellite Radio"
(a
page 20)
XMD 1000
L/C 1144XXXXXX
XM RADIO ID : XXXXXXXX
Car navigation system:
may be
coming...
(may come on the market in the future)
This manual refers to the connection to the Panasonic
car navigation system that may possibly come on the
market in the future. Descriptions regarding the connec-
tion with Panasonic car navigation system are boxed
with dotted line.

Installation Guide

WARNING
This installation information is designed for professional installers with knowledge of
automobile electrical safety systems and is not intended for non-technical, do-it-yourself
individuals. It does not contain instructions on the electrical installation and avoidance of
potential harm to air bag, anti-theft and ABS braking or other systems necessary to install
this product.
Any attempt to install this product in a motor vehicle by anyone other than a profes-
sional installer could cause damage to the electrical safety system and could result in
serious personal injury or death.
If your car is equipped with air bag and/or anti-theft systems, specific procedures may
be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic component against the manufacturer's
recommendation, you must contact your car dealer or manufacturer to determine the
required procedure and strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOY-
MENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAM-
AGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH.
❏ Overview
This product should be installed by a professional.
However, should you decide to install the product against
the manufacturer's recommendation, these operating
Instructions do not contain electrical installation instruc-
tions. You must contact your car dealer or manufacturer for
electrical connection instructions to avoid possible damage
to your electrical safety systems and resulting injury or
death. (Please refer to the "WARNING" statement
above).
Your next step is to decide where to install the unit. The
instructions in these pages will guide you through the
remaining steps:
¡Identify and label the car wires.
¡Connect the car wires to the wires of the power connec-
tor.
¡Install the unit.
¡Check the operation of the unit.
If you encounter problems, please consult your nearest
professional installer.
Warning
¡This unit operates with a 12 V DC negative ground
auto battery system only. Do not attempt to use it
with any other system. Doing so could cause serious
damage.
Before you begin installation, look for the following items
which are packed with your unit.
¡Operating Instructions (including "Limited Warranty"
and "Customer Service Directory").
¡Installation Hardware .....Needed for Installation.
CQ-VD7001U
2
7
