KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Pos: 5 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Inhaltsverzeichnis (--> Für alle Dokumente <--)/Inhaltsverzeichnis @ 19\mod_1320649044386_15.docx @ 109653 @ @ 1 Information on the manual ............................7 General information..........................7 Structure of the manual ........................... 7 Symbols in the manual ..........................
Page 3
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium 11.3 Application "RTC" ..........................31 11.3.1 General - Device function ........................31 11.3.2 General - Control function ........................31 11.3.3 General - Operating mode after reset ....................32 11.3.4 General - Additional functions ....................... 32 11.3.5...
Page 4
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium 11.3.56 Additional cooling stage - Control value difference for sending of cooling control value ....... 51 11.3.57 Additional cooling stage - Cyclic sending of the control value (min) ............51 11.3.58 Additional cooling stage - Maximum control value (0 - 255) ..............51 11.3.59...
Page 5
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium 11.3.112 Fan coil settings - Fan speed levels - Lowest manually adjustable level..........65 11.3.113 Fan coil settings - Fan speed levels - Level status evaluation .............. 66 11.3.114 Fan coil settings heating ........................66 11.3.115 Fan coil settings for heating - Speed level 1 to 5 up to control value (0 to 255) heating .......
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Information on the manual Pos: 7.1 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/G - L/Hinweise zum KNX Technischen Handbuch @ 30\mod_1348481378060_15.docx @ 238547 @ 1 @ 1 Information on the manual Pos: 7.2.1 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (-->...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Information on the manual Pos: 7.5.1 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/S - T/Symbole des Handbuches @ 30\mod_1348481258296_15.docx @ 238518 @ 2 @ 1 Symbols in the manual Pos: 7.5.2 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Hinweise zum KNX Technischen Handbuch (-->...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Safety Pos: 9.7.1 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/U - Z/Zielgruppen und Qualifikationen @ 30\mod_1348478339232_15.docx @ 238335 @ 2 @ 1 Target groups and qualifications Pos: 9.7.2 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Sicherheit (--> Für alle Dokumente <--)/Zielgruppen und Qualifikationen/Zielgruppen und Aulifikationen @ 30\mod_1348478121448_15.docx @ 238322 @ @ 1 Installation, commissioning and maintenance of the product must only be carried out by trained and properly qualified electrical installers.

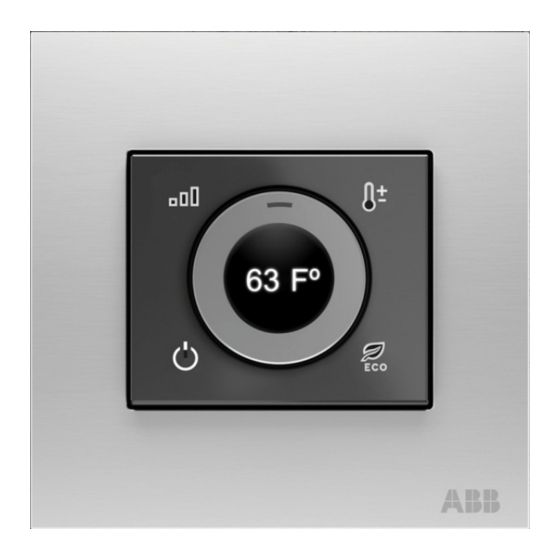

KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Setup and function Pos: 11.1 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/A - F/Aufbau und Funktion @ 11\mod_1279185435352_15.docx @ 83027 @ 1 @ 1 Setup and function Pos: 11.2 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Funktions- und Ausstattungsmerkmale @ 23\mod_1336557630140_15.docx @ 209136 @ 2 @ 1 Features of function and equipment Pos: 11.3 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Aufbau und Funktion/KNX/KNX-Sensorik/Millenium/6124 - RaumtemperaturreglerFunktions- und Ausstattungsmerkmale -- 6124 @ 40\mod_1421831254087_15.docx @ 314523 @ @ 1...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Installation and electrical connection Pos: 18.5 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Auswahl des Montageortes @ 30\mod_1348575236272_15.docx @ 239201 @ 2 @ 1 Selection of installation site Pos: 18.6 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Montage und elektrischer Anschluss/KNX/KNX-Sensorik/Millenium/6124 - Raumtemperaturregler/Auswahl des Montageortes @ 26\mod_1343988571510_15.docx @ 226701 @ @ 1...
Page 17
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Installation and electrical connection Wetting the room temperature controller with fluids is to be avoided. Just as heat radiated from electric loads can impair the temperature regulation, so can direct sunlight on the room temperature controller.
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Installation and electrical connection Then plug the cover frame onto the support ring. – Separate order, see also chapter "Cover frame and support ring", on page 13. Fig. 6: Attaching the cover frame Pos: 18.10 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (-->...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Operation Indications in the display Display Display Action of the device 21,0 °C Set-point temperature / room temperature controller – activated No adjustment required • White: Set-point temperature = actual temperature Reduce set-point temperature •...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Operation 8.3.3 Display The graphics display has RGB backlighting. The backlighting can be adjusted darker or brighter via a parameter setting in Power-Tool. Display Display Action of the device White Temperature / controller on –...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Operation 8.5.2 Deactivation 1. Press the "On/Off" button (6). 2. The device switches to the "Off" state. All buttons are no longer backlit. Fig. 11: The device is deactivated Note All buttons are deactivated.
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Operation Setting the fan speed level (fan coil) or the operating status To adjust the fan speed levels or the operating status, carry out the following steps: 1. Press the "Fan speed levels" button (1) several times until the desired fan speed level or the desired operating status is displayed.
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Operation Change into ECO mode This mode can be used to automatically set a preset temperature, and, if required, a fan speed level. This means that during absence, for example, the temperature is adjusted downward.
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Operation 8.10 Additional operating modes and alarms Standby: Standby mode lowers the temperature during presence below the level of comfort mode. This saves energy. And the room does not cool down during an extended absence.
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Description of applications / objects – Heating and cooling with an additional stage: In addition to the heating and cooling functions, one additional stage each with an autonomous controller type can be programmed.
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Description of applications / objects 11.3.8 Heating control - Heating type Options: PI continuous, 0 – 100% and PI PWM, On/Off: Area (e.g. floor heating) 4°C 200 min ■ Convector (e.g. heater) 1.5°C 100 min ■...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Description of applications / objects Pos: 31.7.42 /DinA-4 -- Online/Applikations- / Parameterbeschreibungen -- (KNX)/Applikation/Objekt-RTR/ModuleRegelung Kühlen @ 40\mod_1421681625088_15.docx @ 312888 @ 3 @ 1 11.3.34 Cooling control Note Only available when the "Device function" parameter is set on either "Single device"...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Description of applications / objects Pos: 31.7.59 /DinA-4 -- Online/Applikations- / Parameterbeschreibungen -- (KNX)/Applikation/Objekt-RTR/ModuleRegelung Zusatzstufe Kühlen @ 40\mod_1421682843651_15.docx @ 313098 @ 3 @ 1 11.3.48 Control of additional cooling stage Note Only available when the "Device function" parameter is set on either "Single device"...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Description of applications / objects Pos: 31.7.151 /DinA-4 -- Online/Applikations- / Parameterbeschreibungen -- (KNX)/Applikation/Objekt-RTR/Module/Sommerkompensation — Sommerkompensation @ 40\mod_1421751085960_15.docx @ 314339 @ 3 @ 1 11.3.123 Summer compensation - Summer compensation Options: In order to save energy, and to ensure that the temperature difference occurring during entry...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Description of applications / objects Pos: 31.7.155 /DinA-4 -- Online/Applikations- / Parameterbeschreibungen -- (KNX)/Applikation/Objekt-RTR/Module/Sommerkompensation — Offset der Solltemperatur beim Ausstieg aus der Sommerkompensation (x 0,1°C) @ 40\mod_1421748869340_15.docx @ 314324 @ 3 @ 1 11.3.127 Summer compensation - Offset of the set-point temperature for the exit from summer...
KNX Technical Reference Manual ® ABB-i-Bus -KNX Millenium Description of applications / objects Pos: 31.41 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/G - L/Lichtszenenaktor @ 41\mod_1422541301858_15.docx @ 331671 @ 2 @ 1 11.8.9 Light scene actuator Pos: 31.42 /Layout bis 2014-11-11/Online-Hilfe/Power-Tool/Power-Tool 2/chm-Online-Hilfe/App/Lichtszenenaktor/App. - Lichtszenenaktor - DIN-A4 @ 9\mod_1269509871874_15.docx @ 53118 @ @ 1 With the "Light scene actuator"...
Page 103
® ABB-i-Bus -KNX Millenium Pos: 33 /Layout bis 2014-11-11/Online-Dokumentation (+KNX)/Rückseiten (--> Für alle Dokumente <--)/Rückseite - ABB-Variante @ 36\mod_1368707504080_15.docx @ 296059 @ @ 1 A member of the ABB Group Notice We reserve the right to at all times make...
