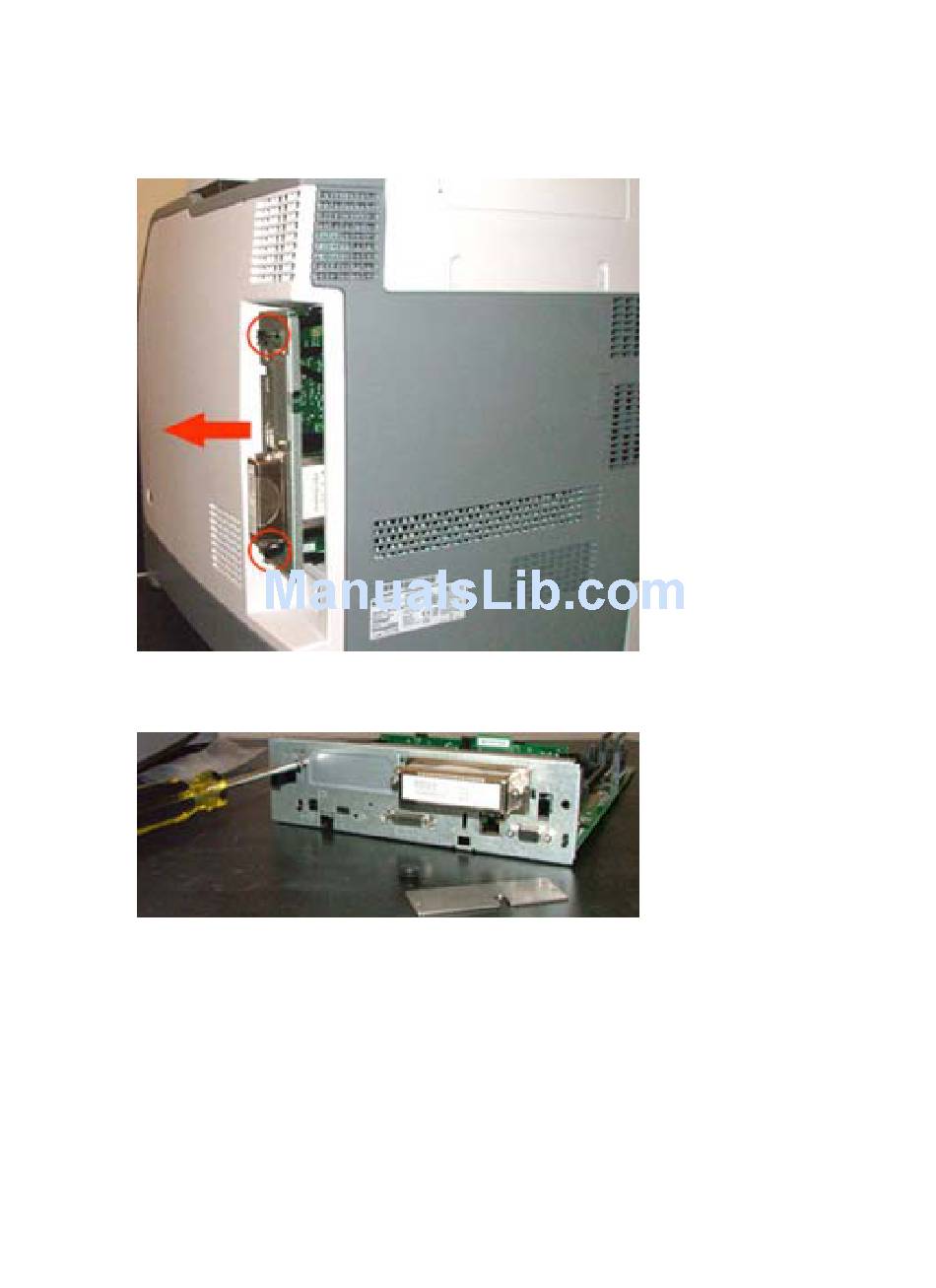

3. Remove the device formatter board.
a. Move the black fasteners on the formatter board.
b. Gently pull the board from the device.
Figure 2-2
4. Remove the existing EIO plate.
Figure 2-3
28 Chapter 2 External Compact Flash card readers
Remove formatter board
Remove EIO plate
