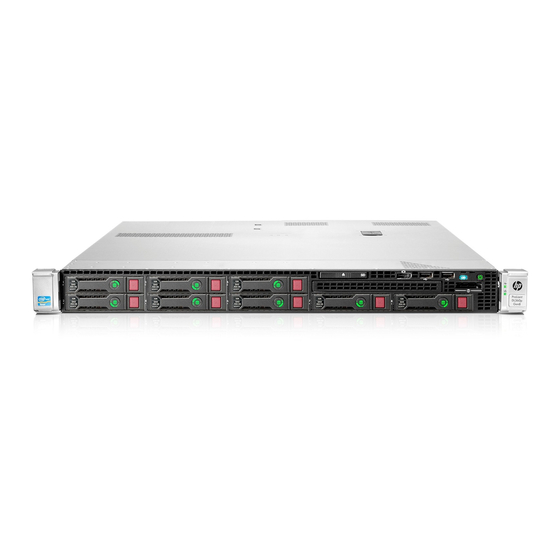

HP ProLiant DL360p Gen8 Server
Maintenance and Service Guide
Abstract
This guide describes identification and maintenance procedures, diagnostic tools, specifications, and requirements for hardware components and
software. This guide is for an experienced service technician. HP assumes you are qualified in the servicing of computer equipment, trained in
recognizing hazards in products, and are familiar with weight and stability precautions.
Part Number: 664727-001
March 2012
Edition: 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant DL360p Gen8

Summary of Contents for HP ProLiant DL360p Gen8

  • Page 1 This guide describes identification and maintenance procedures, diagnostic tools, specifications, and requirements for hardware components and software. This guide is for an experienced service technician. HP assumes you are qualified in the servicing of computer equipment, trained in recognizing hazards in products, and are familiar with weight and stability precautions.
  • Page 2 © Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    Power down the server ........................25 Extend the server from the rack ......................26 Remove the server from the rack ......................26 Access the HP Systems Insight Display ....................26 Safety considerations ..........................27 Preventing electrostatic discharge ...................... 27 Symbols on equipment ........................28 Server warnings and cautions ......................
  • Page 4 HP 750 W CS Platinum Power Supply (94%) specifications ..............80 HP 750 W 48V CS Power Supply specifications ................. 80 HP 1200 W CS HE power supply (90% efficiency) specifications ............81 Hot-plug power supply calculations ......................82 Acronyms and abbreviations ......................83 Documentation feedback ......................

  • Page 5: Customer Self Repair

    HP specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to HP. In cases where it is required to return the defective part to HP, you must ship the defective part back to HP within a defined period of time, normally five (5) business days. The defective part must be returned with the associated documentation in the provided shipping material.
  • Page 6 HP sono realizzati con numerosi componenti che possono essere riparati direttamente dal cliente (CSR, Customer Self Repair). Se in fase di diagnostica HP (o un centro di servizi o di assistenza HP) identifica il guasto come riparabile mediante un ricambio CSR, HP lo spedirà direttamente al cliente per la sostituzione.
  • Page 7 La mancata restituzione del componente può comportare la fatturazione del ricambio da parte di HP. Nel caso di riparazione da parte del cliente, HP sostiene tutte le spese di spedizione e resa e sceglie il corriere/vettore da utilizzare.
  • Page 8 Si, durante la fase de diagnóstico, HP (o los proveedores o socios de servicio de HP) identifica que una reparación puede llevarse a cabo mediante el uso de un componente CSR, HP le enviará dicho componente directamente para que realice su sustitución. Los componentes CSR se clasifican en dos categorías:...
  • Page 9 HP podrá cobrarle por el de sustitución. En el caso de todas sustituciones que lleve a cabo el cliente, HP se hará cargo de todos los gastos de envío y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio.
  • Page 10 Opcional – Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
  • Page 11 No caso desse serviço, a substituição de peças CSR é obrigatória. Se desejar que a HP substitua essas peças, serão cobradas as despesas de transporte e mão-de-obra do serviço. Customer self repair 11...
  • Page 12 Customer self repair 12...
  • Page 13 Customer self repair 13...
  • Page 14 Customer self repair 14...
  • Page 15 Customer self repair 15...

  • Page 16: Illustrated Parts Catalog

    Illustrated parts catalog Mechanical components Item Description Spare part Customer self number repair (on page 5) Access panel 671351-001 Mandatory Miscellaneous hardware kit 671354-001 Mandatory a) Power supply blank — — b) Power cord clip* — — c) Fan blank —...
  • Page 17 Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that HP replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.
  • Page 18 Optional: Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.

  • Page 19: System Components

    750 W, Platinum Plus, 94%* 660183-001 Mandatory e) 750 W 48V DC, 92%* 639173-001 Mandatory f) 1200 W, Platinum Plus, 94%* 660185-001 Mandatory HP FlexibleLOM for Racks a) 1-Gb, 4 ports 634025-001 Optional b) 10-Gb, 2 ports* 649869-001 Optional c) 10-Gb, 2 ports* 634026-001...
  • Page 20 Item Description Spare part Customer self number repair (on page 5) c) 2.00-GHz Intel® Xeon® processor E5-2620, 95W* ** † 670529-001 Optional d) 2.00-GHz Intel® Xeon® processor E5-2630L, 60W* ** † 670535-001 Optional e) 2.30-GHz Intel® Xeon® processor E5-2630, 95W* ** † 670528-001 Optional f) 3.00-GHz Intel®...
  • Page 21 Item Description Spare part Customer self number repair (on page 5) Hard drives — — a) 72-GB, SAS, 6.35 cm (2.5 in) 653949-001 Mandatory b) 100-GB, SATA, MLC SSD, 6.35 cm (2.5 in)* 653965-001 Mandatory c) 100-GB, SATA, MLC SSD, 8.89 cm (3.5 in)* 653968-001 Mandatory d) 146-GB, SAS, 6.35 cm (2.5 in)*...
  • Page 22 Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If, however, you require that HP replace them for you, there may or may not be additional charges, depending on the type of warranty service designated for your product.
  • Page 23 Optional: Opcional—Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
  • Page 24 Illustrated parts catalog 24...

  • Page 25: Removal And Replacement Procedures

    Extend the server from the rack (on page 26). If you are performing service procedures in an HP, Compaq branded, telco, or third-party rack cabinet, you can use the locking feature of the rack rails to support the server and gain access to internal components.

  • Page 26: Extend The Server From The Rack

    Connect the peripheral cables and power cords. Remove the server from the rack To remove the server from an HP, Compaq branded, telco, or third-party rack: Power down the server (on page 25). Extend the server from the rack (on page 26).

  • Page 27: Safety Considerations

    Extend the display from the chassis. The display can be rotated up to 90 degrees. Safety considerations Before performing service procedures, review all the safety information. Preventing electrostatic discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts.

  • Page 28: Symbols On Equipment

    • Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations. • Place parts on a grounded surface before removing them from their containers. • Avoid touching pins, leads, or circuitry. • Always be properly grounded when touching a static-sensitive component or assembly. Symbols on equipment The following symbols may be placed on equipment to indicate the presence of potentially hazardous conditions.

  • Page 29: Access Panel

    WARNING: To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature. Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all •...

  • Page 30: Hot-Plug Drive

    Remove the drive blank. To replace the component, slide the component into the bay until it clicks. Hot-plug drive CAUTION: For proper cooling do not operate the server without the access panel, baffles, expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize the amount of time the access panel is open.

  • Page 31: Power Supply Blank

    Power supply blank Remove the blank. To replace the component, reverse the removal procedure. AC power supply CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless all bays are populated with either a component or a blank. To remove the component: Power down the server (on page 25).

  • Page 32: Drive Cage Assembly

    To replace the component, reverse the removal procedure. Drive cage assembly The hard drive cage assembly includes the Systems Insight Display ("Systems Insight Display LEDs" on page 73), front panel LEDs and buttons (on page 67), drive backplane, and cables. To remove the component: Power down the server (on page 25).

  • Page 33: Dvd-Rom Or Dvd-Rw Drive

    To replace the component, reverse the removal procedure. DVD-ROM or DVD-RW drive To remove the component: Power down the server (on page 25). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Extend the server from the rack (on page 26).

  • Page 34: Fan Module

    Disconnect the SATA DVD cable from the rear of the DVD drive ("DVD-ROM and DVD-RW drive cabling" on page 61). To replace the component, reverse the removal procedure. Fan module The server has eight fans. Install fans 1 and 2 only when processor 2 is installed. When only one processor is installed, install the fan blanks in bays 1 and 2 ("Fan modules"...

  • Page 35: Fan Blank

    The illustration shows fans 1 and 2 removed for a single-processor configuration. To replace the component: Install the fan module. Install the access panel ("Access panel" on page 29). Slide the server into the rack. Power up the server. Fan blank Install fans 1 and 2 only when processor 2 is installed.

  • Page 36: Flash-Backed Write Cache Procedures

    Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Extend the server from the rack (on page 26). Remove the access panel ("Access panel" on page 29). Remove the fan blanks. To replace the component, reverse the removal procedure.

  • Page 37: Fbwc Capacitor Pack

    Extend the server from the rack (on page 26). Remove the access panel ("Access panel" on page 29). If installed, remove the FBWC capacitor pack ("FBWC capacitor pack" on page 37). Remove the PCI riser cage ("PCI riser cage" on page 42). Remove the cache module.

  • Page 38: Recovering Data From The Flash-Backed Write Cache

    Set up a recovery server station using an identical server model. Do not install any internal drives or FBWC in this server. (HP recommends this option.) Find a server that has enough empty drive bays to accommodate all the drives from the failed server and that meets all the other requirements for drive and array migration.

  • Page 39: Front Video Adapter

    Front video adapter Remove the component as indicated. CAUTION: Be sure to connect the video adapter to the video connector, and not to the USB connector. To replace the component, reverse the removal procedure. FlexibleLOM To remove the component: WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment, remove the power cord to remove power from the server.
  • Page 40 Remove the existing FlexibleLOM. To replace the component: Firmly seat the FlexibleLOM in the slot, and then tighten the thumbscrew. Install the access panel ("Access panel" on page 29). Slide the server into the rack. Connect the LAN segment cables. Connect each power cord to the server.

  • Page 41: Rack Bezel

    Rack bezel Remove the component as indicated. To replace the component, reverse the removal procedure. Air baffle To remove the component: Power down the server (on page 25). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Extend the server from the rack (on page 26).

  • Page 42: Pci Riser Cage

    Remove the air baffle. To replace the component, reverse the removal procedure. PCI riser cage To remove the component: CAUTION: To prevent damage to the server or expansion boards, power down the server and remove all AC power cords before removing or installing the PCI riser cage. Power down the server (on page 25).

  • Page 43: Expansion Boards

    Lift the assembly to unseat the PCI riser boards, and then remove the cage. To replace the component, reverse the removal procedure. Expansion boards To remove the component: Power down the server (on page 25). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server.

  • Page 44: Pcie Riser Board

    PCIe riser board To remove the component: Power down the server (on page 25). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Extend the server from the rack (on page 26). Remove the access panel ("Access panel"...

  • Page 45: Heatsink

    Remove the DIMM. To replace the component, reverse the removal procedure. Heatsink WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal system components to cool before touching them. CAUTION: The heatsink thermal interface media is not reusable and must be replaced if the heatsink is removed from the processor after it has been installed.
  • Page 46 Remove the heatsink. To replace the component: Remove the thermal interface protective cover from the heatsink. Removal and replacement procedures 46...

  • Page 47: Processor

    Install the heatsink, aligning the guide pins and cutouts on the front of the heatsink. Install the access panel ("Access panel" on page 29). Slide the server into the rack. Connect each power cord to the server. Connect each power cord to the power source. Power up the server.
  • Page 48 CAUTION: To avoid thermal shutdown, all fans must be installed in a dual processor configuration. To remove the processor: Power down the server (on page 25). Remove all power: Disconnect each power cord from the power source. Disconnect each power cord from the server. Extend the server from the rack (on page 26).
  • Page 49 Remove the processor from the processor retaining bracket. CAUTION: To avoid damage to the processor, do not touch the bottom of the processor, especially the contact area. To replace the component: Install the processor. Verify that the processor is fully seated in the processor retaining bracket by visually inspecting the processor installation guides on either side of the processor.
  • Page 50 CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED. To avoid damage to the system board, do not touch the processor or the processor socket contacts. Close the processor retaining bracket. When the processor is installed properly inside the processor retaining bracket, the processor retaining bracket clears the flange on the front of the socket.
  • Page 51 Remove the thermal interface protective cover from the heatsink. Install the heatsink, aligning the guide pins and cutouts on the front of the heatsink. Install the access panel ("Access panel" on page 29). Slide the server into the rack. Connect each power cord to the server. Removal and replacement procedures 51...

  • Page 52: System Battery

    Connect each power cord to the power source. Power up the server. System battery If the server no longer automatically displays the correct date and time, you may need to replace the battery that provides power to the real-time clock. Under normal use, battery life is 5 to 10 years. WARNING: The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery pack.

  • Page 53: System Board

    To remove the component: IMPORTANT: Be sure you are using the correct spare part. The HP ProLiant DL360p Gen8 Server ships with one of two different system boards that each use specific processors and heatsinks. To identify the proper system board spare part number, see the white label on the system board that shipped with the server.
  • Page 54 Remove the failed system board. To replace the component: Align the system board on the tray, and tighten the thumbscrew to secure it. Removal and replacement procedures 54...
  • Page 55 Open each of the processor locking levers in the order indicated, and then open the processor retaining bracket. Install the processor. Verify that the processor is fully seated in the processor retaining bracket by visually inspecting the processor installation guides on either side of the processor. THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED.
  • Page 56 Close the processor retaining bracket. When the processor is installed properly inside the processor retaining bracket, the processor retaining bracket clears the flange on the front of the socket. CAUTION: Do not press down on the processor. Pressing down on the processor may cause damage to the processor socket and the system board.
  • Page 57 Remove the thermal interface protective cover from the heatsink. Install the heatsink, aligning the guide pins and cutouts on the front of the heatsink. Install all components removed from the failed system board. Install the access panel ("Access panel" on page 29). Slide the server into the rack.

  • Page 58: Hp Trusted Platform Module

    If you suspect a TPM board failure, leave the TPM installed and remove the system board ("System board" on page 53). Contact an HP authorized service provider for a replacement system board and TPM board. Removal and replacement procedures 58...

  • Page 59: Cabling

    For information on cabling peripheral components, refer to the white paper on high-density deployment at the HP website (http://www.hp.com/products/servers/platforms). CAUTION: When routing cables, always be sure that the cables are not in a position where they can be pinched or crimped.

  • Page 60: Fbwc Capacitor Pack Cabling

    • FBWC capacitor pack cabling The second (left) capacitor pack cable connects to an optional Smart Array expansion board. Cabling 60...

  • Page 61: Dvd-Rom And Dvd-Rw Drive Cabling

    DVD-ROM and DVD-RW drive cabling Chipset SATA cable option Cabling 61...
  • Page 62 Route the cable along the edge of the system board. Secure the cable in the clips on the power supply air baffle. Cabling 62...

  • Page 63: Diagnostic Tools

    For more information or to download the utility, see the HP website (http://www.hp.com/servers/diags). HP Insight Diagnostics Online Edition is also available in the SPP. For more information, see the HP website (http://www.hp.com/go/spp/download).

  • Page 64: Hp Insight Diagnostics Survey Functionality

    Configuring memory options • Language selection For more information on RBSU, see the HP ROM-Based Setup Utility User Guide on the Documentation CD or the HP website (http://www.hp.com/support/rbsu). Integrated Management Log The IML records hundreds of events and stores them in an easy-to-view form. The IML timestamps each event with 1-minute granularity.

  • Page 65: Usb Support And Functionality

    USB support and functionality USB support HP provides both standard USB 2.0 support and legacy USB 2.0 support. Standard support is provided by the OS through the appropriate USB device drivers. Before the OS loads, HP provides support for USB devices through legacy USB support, which is enabled by default in the system ROM.

  • Page 66: Component Identification

    Component identification Front panel components • 8 SFF Item Description SAS/SATA/SSD drive bay 1 SAS/SATA/SSD drive bay 2 SAS/SATA/SSD drive bay 3 SAS/SATA/SSD drive bay 4 SAS/SATA/SSD drive bay 5 SAS/SATA/SSD drive bay 6 SAS/SATA/SSD drive bay 7 Systems Insight Display DVD-ROM drive (optional) SAS/SATA/SSD drive bay 8 Front video connector (front video port adapter required)

  • Page 67: Front Panel Leds And Buttons

    • 4 LFF Item Description SAS/SATA/SSD drive bay 1 DVD-ROM drive (optional) SAS/SATA/SSD drive bay 2 Serial number tab SAS/SATA/SSD drive bay 3 Systems Insight Display SAS/SATA/SSD drive bay 4 Front video connector (front video port adapter required) USB connectors (2) Front panel LEDs and buttons Item Description...

  • Page 68: Rear Panel Components

    Item Description Status no power supplies are installed, facility power is not available, or the power button cable is disconnected. Health LED Solid green = System health is normal. Flashing amber = System health is degraded. To identify the component in a degraded state, see "Systems Insight Display LEDs (on page 73)."...

  • Page 69: Rear Panel Leds And Buttons

    Rear panel LEDs and buttons Item Description Status HP iLO/standard Solid green = Activity exists. NIC activity LED Flashing green = Activity exists. Off = No activity exists. HP iLO/standard Solid green = Link exists. NIC link LED Off = No link exists.

  • Page 70: System Board Components

    System board components Item Description TPM connector PCIe x8 riser connector PCIe x16 riser connector FlexibleLOM SAS cache module connector Front LED/Power cable connector Front USB/Video cable connector SAS connector B (Drives 5–8) SAS connector A (drives 1–4) NMI jumper System maintenance switch Processor 1 Fan module 8 connector...

  • Page 71: Dimm Slots

    DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use the letter assignments for population guidelines. System maintenance switch Position Default Function Off = HP iLO security is enabled. On = HP iLO security is disabled. Off = System configuration can be changed. On = System configuration is locked. Reserved Reserved Off = Power-on password is enabled.

  • Page 72: Nmi Jumper

    Position Default Function Off = No function On = ROM reads system configuration as invalid. — Reserved — Reserved — Reserved — Reserved — Reserved — Reserved To access redundant ROM, set S1, S5, and S6 to on. When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all system configuration settings from both CMOS and NVRAM.

  • Page 73: Systems Insight Display Leds

    The HP Systems Insight Display LEDs represent the system board layout. The display provides status for all internal LEDs and enables diagnosis with the access panel installed. To view the LEDs, access the HP Systems Insight Display (on page 26).

  • Page 74: Systems Insight Display Led Combinations

    Systems Insight Display LED combinations When the health LED on the front panel illuminates either amber or red, the server is experiencing a health event. Combinations of illuminated Systems Insight Display LEDs, the system power LED, and the health LED indicate system status.

  • Page 75: Device Numbers

    Device numbers • Four-hard drive configuration • Eight-hard drive configuration Drive LED definitions Item Status Definition Locate Solid blue The drive is being identified by a host application. Flashing blue The drive carrier firmware is being updated or requires an update. Activity ring Rotating green Drive activity...

  • Page 76: Fan Modules

    Item Status Definition Flashing green The drive is rebuilding or performing a RAID migration, stripe size migration, capacity expansion, or logical drive extension, or is erasing. Flashing The drive is a member of one or more logical drives and predicts amber/green the drive will fail.

  • Page 77: T-10/T-15 Torx Screwdriver

    Install fans 1 and 2 only when processor 2 is installed. When only one processor is installed, always install the fan blanks. T-10/T-15 Torx screwdriver The server includes a T-10/T-15 Torx screwdriver that ships on the air baffle. Use the screwdriver to loosen screws or thumbscrews, as needed, during procedures.

  • Page 78: Specifications

    Depending on installed options, the server is configured with one of the following power supplies: • HP 460 W CS HE Power Supply (92%) specifications (on page 79) • HP 460 W CS Platinum Power Supply (94%) specifications (on page 79) •...

  • Page 79: Hp 460 W Cs He Power Supply (92%) Specifications

    • HP 1200 W CS HE Power Supply (90%) specifications ("HP 1200 W CS HE power supply (90% efficiency) specifications" on page 81) HP 460 W CS HE Power Supply (92%) specifications Specification Value Input requirements 100 to 120 VAC, 200 to...

  • Page 80: Hp 750 W Cs Platinum Power Supply (94%) Specifications

    750 W at 200V to 240V AC input 750 W at 100V to 120V AC input Maximum peak power 750 W at 200V to 240V AC input HP 750 W CS Platinum Power Supply (94%) specifications Specification Value Input requirements...

  • Page 81: Hp 1200 W Cs He Power Supply (90% Efficiency) Specifications

    2720 at 72 VDC input Power supply output 750 W Rated steady-state power 750 W Maximum peak power HP 1200 W CS HE power supply (90% efficiency) specifications Specification Value Input requirements 100 V AC Rated input voltage 110 to 120 V AC...

  • Page 82: Hot-Plug Power Supply Calculations

    The branch circuit overcurrent protection must be rated 24 A. Hot-plug power supply calculations For hot-plug power supply specifications and calculators to determine electrical and heat loading for the server, refer to the HP Enterprise Configurator website (http://h30099.www3.hp.com/configurator/). Specifications 82...

  • Page 83: Acronyms And Abbreviations

    Acronyms and abbreviations Automatic Server Recovery double data rate FBWC flash-backed write cache Integrated Lights-Out Integrated Management Log non-maskable interrupt NVRAM non-volatile memory PCIe peripheral component interconnect express POST Power-On Self Test RBSU ROM-Based Setup Utility serial attached SCSI SATA serial ATA Acronyms and abbreviations 83...
  • Page 84 trusted platform module unit identification universal serial bus Acronyms and abbreviations 84...

  • Page 85: Documentation Feedback

    Documentation feedback HP is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (mailto:docsfeedback@hp.com). Include the document title and part number, version number, or the URL when submitting your feedback.

  • Page 86: Index

    HP Insight Diagnostics 25, 63, 64 drives, determining status of 75 HP Insight Diagnostics survey functionality 64 DVD tray 33, 66 HP Systems Insight Display LED combinations 74 DVD-ROM cabling 61 DVD-ROM drive 61 DVD-RW drive 61 identifying components 66...
  • Page 87 internal cables 59 processors 47 internal USB functionality 65 rack bezel 41 LED, power on 67 rack, extending server from 26 LED, system power 67 rack, removing server from 26 LED, UID 67, 69 RBSU (ROM-Based Setup Utility) 64 LEDs 66, 74 rear panel buttons 69 LEDs, front panel 75 rear panel components 68...
  • Page 88 Torx screwdriver 77 TPM (Trusted Platform Module) 58 troubleshooting resources 63 Trusted Platform Module (TPM) 58 UID button 69 UID LED 69 USB connectors 66, 68 USB support 65 utilities 63 utilities, deployment 64 video connector 66, 68 warnings 28 Index 88...
