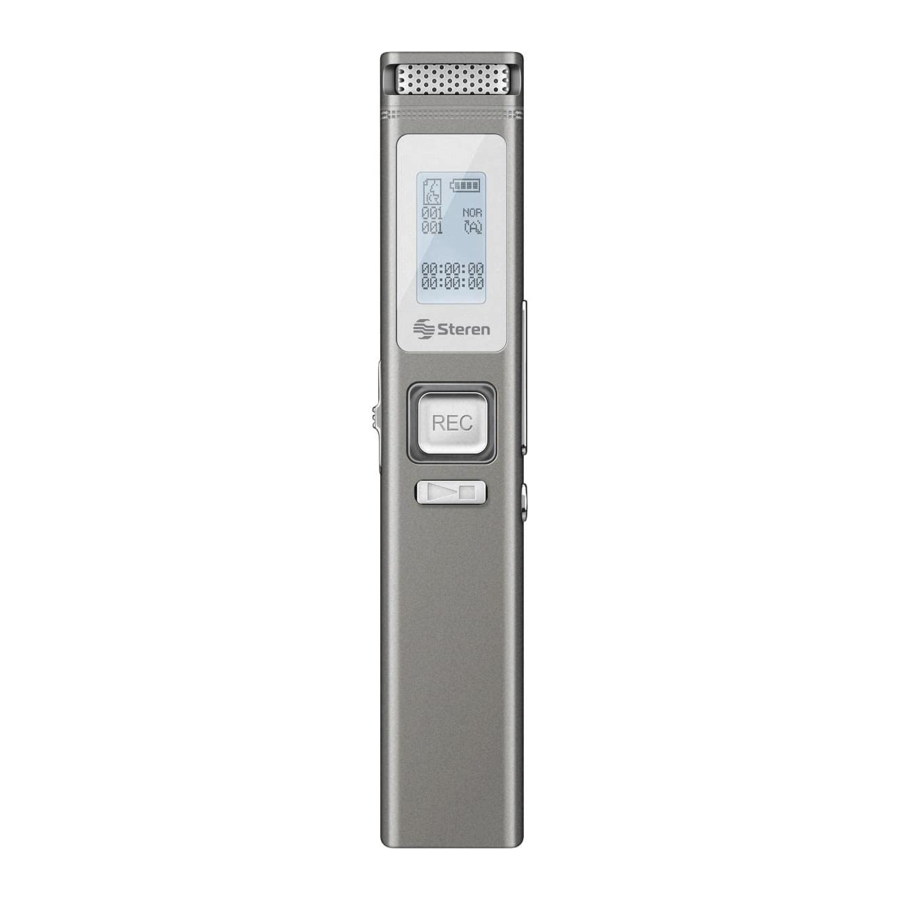

STEREN REC-854 - Digital Voice Recorder Manual

CAUTIONS

Before to use the product, please read carefully this manual to avoid any malfunction.

• This device is not designed for be using by people (including children) with physical capacities, sensorial or mental reduced, or they don't have the necessary experience or knowledge.
• The children should be supervised to ensure that don't use it like a toy.
• Don't place heavy objects over the recorder.
• Don't use or store the device in places where exist water or splashes.
• Don't use abrasive liquids to clean it.

DESCRIPTION

1. Microphone
2. Display
3. Recording / Save
4. Play/ Pause/ Enter
5. ON/OFF switch
6. 3.5 mm microphone input
7. 3.5 mm earphones input
8. Speaker
9. Volume +/ Up; Volume -/ Down
10. Menu / Back
11. Micro USB port

Display

1. Current file (Playback or recording)
2. Total files
3. Total time of recording
4. Battery level
5. File info (Date and hour)
6. Recording time

7. Mode (recorder /player)
8. Equalizer type
9. Repeat type

HOW TO CHARGE THE BATTERY

When you connect the recorder with the switch off, the screen will show the battery level. When it is totally charged the message "full"will appear.

HOW TO USE

Slide the switch toward ON( ▲) position to turn on the recorder; switch it toward OFF( ▼) position to turn off.

Rest mode
With the recorder on, press and hold the button, to set it in rest, to reactivate it press and hold the same button.

To make any button actions, the screen must be turn on. Press once any button to turn on then press the button that you want, for the action are maked.

Recording

1. Press REC. Will show "Initializing" in the screen, next will start the audio record.
2. Press and hold REC to stop the audio record.

Playback files

1. Press once to playback the files. Press again to stop.
2. Press Volume + or Volume – to change the file.
3. Up or down the volume level pressing then Volume + or Volume – during the playback file.

Music playback

Previously you must connect the recorder into your PC and to transfer audio files in MP3 format. The music files should be in the main folder (outside from the all folders).

1. Press and hold the button until in the screen will show the"MUSIC" message.
2. Play or pause the tracks with
3. Change to the next file or to back pressing Volume + or Volume – during playback file.
4. Up or down the volume level pressing then Volume + or Volume – during the playback file..
5. Press and hold until in the screen will appear the message "VOICE", to exit from the playback music mode

How to navigate in the menu

1. To access at the "Main menu" or to back to the previous screen press
2. Enter to submenu or select an option pressing ▪
3. Move between options with the Volume + and Volume – buttons.

Main Menu

Record Set

• System Time

Press to change the date and hour. With Volume + and volume – you'll can modify it. Press to save.

• Record type

Select the quallity of the recording 384, 192, 128 64 and 32 kbps.

• Gain level

Select the gain of the microphone 0 (less sensitive) and 7 (more sensitive).

• VOR Switch

Activate or deactivate for what the recording restart when a sound is detected and is paused when not detected a sound. For what the recording to continue only when there voice, we recommend down the gain level to "0".

• Monitor

Activate or deactivate the monitor. Is required to connect the earphones into the 3.5 mm port, to can listen while capture audio.

• Record from

Select the recording type, external or internal microphone. You require to connect a microphone into the 3.5 mm port.

• Auto Record

Adjust the start and the end of the programmed recording.

• Exit

Setting Mode

• Contrast. Adjust the level contrast between 0 and 15.
• BackLight. Adjust the time of the background light.
• Power off. Adjust the automatic off time between 1 and 60 seconds after do not to press any button. Don't apply when is recording or playing.
• Language. Select the language of the system.
• Password Switch. Activate or deactivate the request of a password.
• Password Set. Set a password of 4 digits and confirm with
• Storage. Show the current status of the memory.
• Restore Factory. Back to default values.
• Exit

Delete file

Delete the current file (Only apply in audio files).

Delete all

Delete all files (Only apply in audio files).
Exit

Playback menu

During the playback of a file, press and hold to access in the next menu:

• Repeat

Normal
Repeat One
Repeat All
Exit

• Equalizer

NATURAL
ROCK
POP
CLASSIC
SOFT
JAZZ
DBB

• Replay.

Press Volume – to select the initial point A, press again to select the final point B. Press ►▪ to exit from this mode.

• Replay times.

Select the times of the repeat of the segment A-B.

• Replay gap

Select the seconds between A-B segment.

SPECIFICATIONS

Input: 5 V (x USB)
Memory: 8 GB
Frequency range: 20 Hz – 20 000 Hz
Specifications may change without previous notice
