Vitek Transcendent VT-TNR Series User Manual

4, 8, 16, 32, 64, and 128 channel 8 megapixel h.265 real time network video recorders with 4k hdmi output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For models: VT-TNR414P(2), VT-TNR818P(2),
VT-TNR818PF, VT-TNR1646PF, VT-TNR3216PF, VT-
TNR6480E1, VT-TNV128E1
FEATURES:
• 4, 8, 16, 32, 64 and 128 Channel Stand-alone Real-time IP Network Video Recorders
• Full 8 Megapixel Real-time recording & playback
• 4K HDMI & VGA Video Outputs
• H.265 / H.264 Video Compression
• Plug and Play & Auto configuration for many leading ONVIF compliant IP Camera models
• Internal PoE Switch VT-TNR414P(2), VT-TNR818P(2), VT-TNR818PF, VT-TNR1646PF,
VT-TNR3216PF
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Supports SATA2/SATA3 HDD
• Applications for iOS® & Android®
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Web-based remote configuration
• Control locally via Front Panel Controls (Except VT-TNV128E1), USB Mouse, or with the
Included IR Remote control

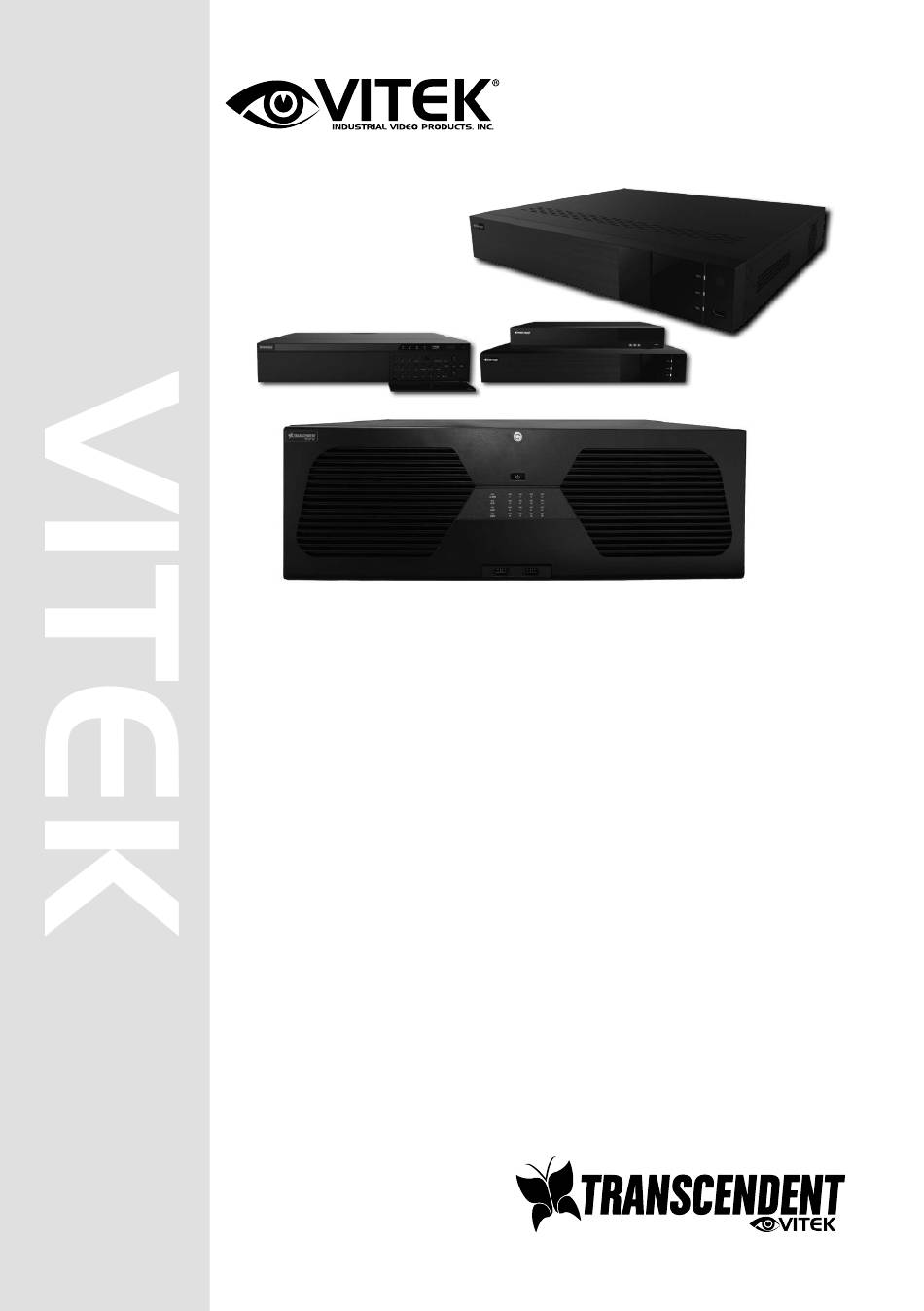

VT-TNR Series
Transcendent Series 4, 8, 16, 32, 64,
and 128 Channel 8 MegaPixel H.265
Real Time Network Video Recorders
with 4K HDMI Output

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transcendent VT-TNR Series and is the answer not in the manual?

Questions and answers

Matt Stelletell
February 15, 2025

USB ports not picking up new mouse. How do I fix this issue?

0
1 comments:
Mr. Anderson
February 15, 2025

If the USB ports on the Vitek Transcendent VT-TNR Series are not detecting a new mouse, try the following steps:

1. Check Connections – Ensure the mouse is properly connected to a functional USB port.
2. Try a Different USB Port – Plug the mouse into another USB port to rule out a faulty port.
3. Use a Compatible Mouse – Ensure the mouse is a standard USB mouse, as some specialized models may not be supported.
4. Restart the NVR – Power off the NVR, unplug it, wait a few seconds, then power it on and reconnect the mouse.
5. Use Another Mouse – Test with a different USB mouse to determine if the issue is with the device.
6. Check for USB Backup Conflicts – If a USB backup device is connected, disconnect it and try the mouse again.
7. Refer to the User Guide – If issues persist, consult the manual or contact Vitek support for further troubleshooting.

These steps should help resolve the issue.

This answer is automatically generated

0

Related Manuals for Vitek Transcendent VT-TNR Series

Summary of Contents for Vitek Transcendent VT-TNR Series

  • Page 1 VT-TNR Series Transcendent Series 4, 8, 16, 32, 64, and 128 Channel 8 MegaPixel H.265 Real Time Network Video Recorders with 4K HDMI Output For models: VT-TNR414P(2), VT-TNR818P(2), VT-TNR818PF, VT-TNR1646PF, VT-TNR3216PF, VT- TNR6480E1, VT-TNV128E1 FEATURES: • 4, 8, 16, 32, 64 and 128 Channel Stand-alone Real-time IP Network Video Recorders •...
  • Page 2 Disclaimer • Regarding products with internet access, the use of the product is done wholly at your own risk. Vitek IVP Inc. is not responsible for abnormal opera- tion, privacy leakage or other damages resulting from cyber attack, hacking, virus inspection, or other internet security risks; however, our company will...
  • Page 3 • The storage period of personal data depends on the capacity of the storage devices and all data stored in the device shall be handled by the use. Vitek is not responsible for data loss.
  • Page 4 Regulatory Information FCC Marking The products have been tested and found in compliance with the council FCC rules and regulations part 15 subpart B. Operation of this product is subject the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation.

  • Page 5: Table Of Contents

    Table of Contents INTRODUCTION ................. 1 1.1 F .................... 1 EATURES 1.2 F ..............5 RONT ANEL ESCRIPTIONS 1.3 R ..............6 ANEL ESCRIPTIONS 1.4 C ..................9 ONNECTIONS BASIC OPERATION GUIDE ............. 12 2.1 S & S ............... 12 TARTUP HUTDOWN 2.1.1 Startup ..................
  • Page 6 5.4.4 Fisheye Settings ................. 46 5.4.5 Image Adjustment ............... 46 PTZ ....................49 6.1 PTZ C ..............49 ONTROL NTERFACE 6.2 P ................54 RESET ETTINGS 6.3 C ................54 RUISE ETTINGS 6.4 C ..............55 RUISE ROUP ETTINGS 6.5 T ................
  • Page 7 9.1.1 Face Detection Settings .............. 86 9.1.2 Face Database Management ............88 9.1.3 Face Recognition Settings ............91 9.2 L .............. 93 ICENSE LATE ECOGNITION 9.2.1 License Plate Detection Settings..........93 9.2.2 Plate Database Management............94 9.2.3 License Plate Recognition Settings ..........95 9.3 T ...................
  • Page 8 11.5.7 Light ..................132 11.5.8 Alarm Server ................132 11.6 M ................132 ANUAL LARM 11.7 V ............... 132 LARM TATUS ACCOUNT & PERMISSION MANAGEMENT ......... 134 12.1 A ..............134 CCOUNT ANAGEMENT 12.1.1 Add User ................134 12.1.2 Edit User ................135 12.2 U &...
  • Page 9 14.1 M ............159 OBILE LIENT URVEILLANCE 14.2 W LAN A ................159 CCESS 14.3 W WAN A ................. 160 CCESS 14.4 W ..............161 EMOTE ONTROL 14.4.1 Remote Preview ..............162 14.4.2 Remote Playback ..............164 14.4.3 Remote Search and Backup ........... 165 14.4.4 Intelligent Analysis ..............

  • Page 10: Introduction

    VITEK Industrial Video Products – Transcendent Series NVRs 1 Introduction 1.1 Features Basic Functions Supports network device access including IP camera/dome and ONVIF IP cameras Some NVRs support H.265S/H.265+/ H.265 and H.264S/H.264+/ H.264 IP cameras Supports standard ONVIF protocol Supports dual stream recording of each camera Supports IP cameras to be added quickly or manually Supports collective or individual configuration of the cameras’...
  • Page 11 VITEK Industrial Video Products – Transcendent Series NVRs Supports image and lens adjustment (only available for some cameras) Supports quick camera adding in the camera window of the live preview interface The live camera sequence of the web client will keep consistent with that of the NVR after...
  • Page 12 VITEK Industrial Video Products – Transcendent Series NVRs Record Backup Supports recording to be backed up through USB (U disk, mobile HDD) or e-SATA interface Supports recording to be backed up by time/event/image searching Supports record cutting for backing up when playing back...
  • Page 13 VITEK Industrial Video Products – Transcendent Series NVRs Supports remote camera configuration of the NVR including video parameters and image quality. Supports remote searching, playback and backup of the NVR Supports manual alarm to be triggered and cleared remotely An auto-focusing camera can be adjusted through web client (support zoom in/out, but one...

  • Page 14: Front Panel Descriptions

    VITEK Industrial Video Products – Transcendent Series NVRs 1.2 Front Panel Descriptions The following descriptions are for reference only. Type I: Name Descriptions When recording, the light is blue When accessing a network , the light is blue Power Power indicator, when connected, the light is blue...

  • Page 15: Rear Panel Descriptions

    VITEK Industrial Video Products – Transcendent Series NVRs 1.3 Rear Panel Descriptions Here we only use panels for example to introduce their interfaces and connections. The interfaces and locations of the interfaces are only for reference. Please take the real object as the standard.
  • Page 16 VITEK Industrial Video Products – Transcendent Series NVRs Name Descriptions Connectors for speed dome. Y is TX+, Z is TX- RS485 Y/Z interface (This interface of some models is unavailable.) RS485 A/B interface Connect to a keyboard. A is TX+; B is TX- AUDIO OUT Audio output;...
  • Page 17 VITEK Industrial Video Products – Transcendent Series NVRs Name Descriptions AUDIO IN Audio input Power Switch Press the switch to turn on/off the NVR Power Supply Power supply interface Name Descriptions Power Supply DC48V power supply interface PoE port 8 PoE network ports; connect to 8 PoE IP cameras...

  • Page 18: Connections

    VITEK Industrial Video Products – Transcendent Series NVRs Name Descriptions LAN1/LAN2 Network port Connect to 1920×1080 high definition display device. HDMI2 Connect to monitor as an AUX output channel by channel. Only video display, no menu show USB interface, connect USB storage device or USB...
  • Page 19 VITEK Industrial Video Products – Transcendent Series NVRs Alarm Input: Alarm IN 1~16 are 16 CH alarm input interfaces. There are no type requirements for sensors. NO type and NC type are both available. The way to connect sensor and the device is as shown below: The alarm input is an open/closed relay.
  • Page 20 VITEK Industrial Video Products – Transcendent Series NVRs RS485 Connection There are two types of RS485 interfaces: （Type 1） （Type 2） Type 1: The P/Z interfaces are unavailable. K/B interfaces are used to connect keyboard. ype 2: The RS485 interfaces are used to connect keyboard. A is TX+; B is TX-.

  • Page 21: Basic Operation Guide

    VITEK Industrial Video Products – Transcendent Series NVRs 2 Basic Operation Guide 2.1 Startup & Shutdown Please make sure all the connections are done properly before you apply power to the unit. Proper startup and shutdown are crucial to extending the life of your device.
  • Page 22 VITEK Industrial Video Products – Transcendent Series NVRs Button Function Switch off—to stop the device Power Button Record Button To start recording -/-- /0-9 Input number or choose camera Fn1 Button Unavailable Multi Button To choose multi screen display mode...
  • Page 23 VITEK Industrial Video Products – Transcendent Series NVRs Note: Press P.T.Z. button to enter PTZ setting mode, choose a channel and press P.T.Z. button again to hide the P.T.Z. control panel. You can press preset, cruise, track, wiper or light button to enable the relevant...

  • Page 24: Mouse Control

    VITEK Industrial Video Products – Transcendent Series NVRs Button Function Record manually Search To enter search mode MEUN To enter menu Exit To exit the current interface ENTER To confirm the choice or setup Direction button To move cursor in setup...

  • Page 25: Common Button Operation

    VITEK Industrial Video Products – Transcendent Series NVRs The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters.

  • Page 26: Wizard & Main Interface

    VITEK Industrial Video Products – Transcendent Series NVRs 3 Wizard & Main Interface 3.1 Startup Wizard The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons ( : no disk;...
  • Page 27 VITEK Industrial Video Products – Transcendent Series NVRs Enable pattern lock and click “Edit” to set the pattern lock. Click “Next” to set questions and answers for password security of admin. If you forget the password, please refer to Q4 in Appendix A FAQ for details.
  • Page 28 VITEK Industrial Video Products – Transcendent Series NVRs Note: If you use the NVR with the PoE network ports, the online state of the internal Ethernet port Ø will be shown on the interface. Refer to the picture below. Please refer to 13.1.1 TCP/IP Configuration for detail introduction of the internal Ethernet port.
  • Page 29 VITEK Industrial Video Products – Transcendent Series NVRs ⑥ Add Camera. Click “Refresh” to refresh the list of online IP cameras which are in the same local network with NVR and then click to add the searched camera. Click “Add All” to add all the cameras in the list.
  • Page 30 VITEK Industrial Video Products – Transcendent Series NVRs Click to edit the searched IP camera as shown on the below left. Enter the new IP address, subnet mask, gateway, username and the password of the camera. Click “OK” to save the settings.
  • Page 31 VITEK Industrial Video Products – Transcendent Series NVRs See 7.4 Disk for details. Click “Next” to continue. ⑨ Record Settings. Two record modes are available: auto and customization. Auto: Select one auto mode in the interface as shown below and then click the “Next” to save the settings.

  • Page 32: Main Interface

    VITEK Industrial Video Products – Transcendent Series NVRs Upgrade for details. 3.2 Main Interface 3.2.1 Main Interface Introduction The buttons in area ① are introduced in the table below.
  • Page 33 VITEK Industrial Video Products – Transcendent Series NVRs Button Meaning Start button. Click it to pop up area ③. Full screen button. Click it to show full screen; click it again to exit the full screen. Screen mode button. Dwell button (see 5.2.2 Quick Sequence View and 5.2.4 Scheme View In Sequence for details).
  • Page 34 VITEK Industrial Video Products – Transcendent Series NVRs Introduction of area ②: Area ② is hidden by default. Move the cursor to the right to reveal this area. Click “Camera” to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window.

  • Page 35: Setup Panel

    VITEK Industrial Video Products – Transcendent Series NVRs Icon / Button Meaning Click to go to the intelligent analytics interface. Click to go to record search and backup interface, see 8.4 Record Search, Playback & Backup for details. Click to go to playback interface (click on the tool bar at the bottom of the live preview interface to set the default playback time), see 8.2...

  • Page 36: Main Functions

    VITEK Industrial Video Products – Transcendent Series NVRs There are some function items on the left side of the camera management interface. Click each item to go to corresponding interface or window. For instance, click “Add Camera” to pop up the window as shown below.
  • Page 37 VITEK Industrial Video Products – Transcendent Series NVRs Motion Alarm Handling and Alarm Out Settings. Please see Chapter 9 AI Event Management and Chapter 11 General Event Management for details. Disk Ø This module covers Disk Management, Storage Mode and Disk Information. Please see Chapter 7 Record &...

  • Page 38: Camera Management

    VITEK Industrial Video Products – Transcendent Series NVRs 4 Camera Management 4.1 Add/Edit Camera 4.1.1 Add Camera The network of the NVR should be set before adding IP camera (see 13.1.1 TCP/IP Configuration for details). Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of the preview window to pop up the “Add Camera”...
  • Page 39 VITEK Industrial Video Products – Transcendent Series NVRs Add Manually Ø Enter the IP address or domain name (click in the IP address column to pop up the domain name input window, enter the domain name of the IPC in the window and then click “OK”), port, username and password of the camera and then select the protocol.
  • Page 40 VITEK Industrial Video Products – Transcendent Series NVRs Add Recorder Ø Quickly Add：Select the searched NVR/DVR and then click “Add” to add NVR in the same local network. Manually Add：Click “Manual Add” and then enter the IP address or domain name, port, username and password of the NVR/DVR.

  • Page 41: Edit Camera

    VITEK Industrial Video Products – Transcendent Series NVRs Note: Only the local NVR has unoccupied channels, may the IPC of other NVR/DVR in the same local network be added. And the added IPC supports previewing and recording. 4.1.2 Edit Camera Click “Edit Camera”...

  • Page 42: Add/Edit Camera Group

    VITEK Industrial Video Products – Transcendent Series NVRs The IP camera directly connected to the PoE port of the NVR through private protocol will be shown automatically in the camera list. One of the two conditions must be met if the IP camera which is directly connected to the PoE port of the NVR through ONVIF protocol should be shown automatically in the camera list.

  • Page 43: Edit Camera Group

    VITEK Industrial Video Products – Transcendent Series NVRs 4.2.2 Edit Camera Group Click to modify the group information such as group name and dwell time. Click delete the group. Click to add cameras to the group. 4.2.3 IP Planning Some models may not support this function.

  • Page 44: Live View Introduction

    VITEK Industrial Video Products – Transcendent Series NVRs 5 Live View Introduction 5.1 Live View Interface Introduction First, you should add a camera after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface shown below, drag one camera in the preview window to another window for camera window exchanging.

  • Page 45: View Mode

    VITEK Industrial Video Products – Transcendent Series NVRs Button Menu List Meaning Click to pop-up the snapshot window. Click “Save” in the window to Snapshot save the image. Click “Export” to export the image. PTZ Control Click to go to PTZ control interface. See Chapter 6 PTZ for details.
  • Page 46 VITEK Industrial Video Products – Transcendent Series NVRs Add Display Mode Ø Method One: ① Click “Customize Display Modes” in the above interface ② Click to add a display mode name and then set the screen mode. ③ Add the cameras and adjust the cameras’ display sequence as required.

  • Page 47: Quick Sequence View

    VITEK Industrial Video Products – Transcendent Series NVRs Fisheye Mode Ø Some models may not support this function. In the live preview, select the view mode according to the installation mode and display mode of the fisheye camera. Please refer to User Manual of relevant camera.

  • Page 48: Camera Group View In Sequence

    VITEK Industrial Video Products – Transcendent Series NVRs Go to the live preview interface and then click to pop up a little window. Set the dwell time in the window and then click to view the live group by group according to the camera number of the current screen mode.

  • Page 49: Scheme View In Sequence

    VITEK Industrial Video Products – Transcendent Series NVRs ② Double click one camera group on the right side of the interface. The cameras in the group will start camera group view one by one in the selected camera window. You can also drag the group directly to any preview window. Right click on the group view window and then click “Close Dwell”...

  • Page 50: Pos Settings

    VITEK Industrial Video Products – Transcendent Series NVRs Start Sequence View Ø Go to live preview interface and then click to pop up a window. Set the dwell time in the window and then click to start scheme view in sequence. Double click the sequence view interface to pause the view;...
  • Page 51 VITEK Industrial Video Products – Transcendent Series NVRs ⑤ Click “Configure” under “Display Settings” to set the general settings and the position of the POS information. Set the start character and the end character and display time-out period in the general settings interface. Drag your mouse to set the position of the POS information in the display position interface.
  • Page 52 VITEK Industrial Video Products – Transcendent Series NVRs ⑦ Choose the manufacturer of the POS device. ⑧ Click “Apply” to save the settings and then the transaction information will be displayed on the preview image in real-time. One POS is bound to one camera:...

  • Page 53: Preview Image Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs 5.4 Preview Image Configuration 5.4.1 OSD Settings Click StartàSettingsàCameraàImageàOSD Settings to go to the interface as shown below. Select the camera, enter the camera name (or double click the camera name in the camera list to change the camera name), enable or disable the name and time OSDs (if enabled, drag the red name and time OSDs directly in the image view area to change the OSDs’...

  • Page 54: Image Settings

    VITEK Industrial Video Products – Transcendent Series NVRs 5.4.2 Image Settings Click StartàSettingsàCameraàImageàImage Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click the “Advanced” button or in the camera list on the right side of the interface to pop up the “Image Adjust”...

  • Page 55: Fisheye Settings

    VITEK Industrial Video Products – Transcendent Series NVRs 5.4.4 Fisheye Settings Some models may not support this function. Click StartàSettingsàCameraàImageàFisheye Settings to go to the interface as shown below. Select the camera and the mode of fisheye and installation. 5.4.5 Image Adjustment...
  • Page 56 VITEK Industrial Video Products – Transcendent Series NVRs Parameter Meaning Brightness Brightness level of the camera’s image. Contrast Color difference between the brightest and darkest parts. Saturation Degree of color purity. The color is purer, the image is brighter. Color degree of the image.
  • Page 57 VITEK Industrial Video Products – Transcendent Series NVRs The introductions of these parameters and buttons are as follows. Button/Parameter Meaning Click to zoom in/out the image. If manual mode is selected, focus button & “One Key Focus” & “Day/night Focus Mode mode switch autofocus”...

  • Page 58: Ptz

    VITEK Industrial Video Products – Transcendent Series NVRs 6 PTZ 6.1 PTZ Control Interface You can control the IP dome or PTZ which connects to the IP camera for PTZ control. Click on the tool bar at the bottom of the live preview window to go to the PTZ control interface as shown below.
  • Page 59 VITEK Industrial Video Products – Transcendent Series NVRs Button Meaning Click to rotate the dome. Click to stop rotating the dome. Click to zoom in / out the camera image. Click to increase / decrease the focal length. Click to increase / decrease the iris of the dome.
  • Page 60 VITEK Industrial Video Products – Transcendent Series NVRs Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out. Advanced 3D Control Ø Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked point.
  • Page 61 VITEK Industrial Video Products – Transcendent Series NVRs selected preset. You can also go to preset setting interface for preset setting, see 6.2 Preset Setting for details. Cruise Settings Ø On the right panel, click to go to cruise operation tab and then click “Add” to pop up a window as shown below left.
  • Page 62 VITEK Industrial Video Products – Transcendent Series NVRs Cruise Group Settings Ø On the right panel, click to go to the cruise group setting tab. Click “Add” to add a cruise group as shown below. In the “Add Cruise” window, select the cruise line name. After that, click “Play” to play the cruise lines in sequence.

  • Page 63: Preset Settings

    VITEK Industrial Video Products – Transcendent Series NVRs 6.2 Preset Settings Click StartàSettingsàCameraàPTZàPreset to go to the interface as shown below. Add preset Ø Select camera and then click “Add” to add preset; or click in the camera list on the right side of the interface to display the preset information of the dome and then click add preset.

  • Page 64: Cruise Group Settings

    VITEK Industrial Video Products – Transcendent Series NVRs Add Cruise Ø Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the “Add Cruise” window are similar to that of the PTZ control interface;...

  • Page 65: Trace Settings

    VITEK Industrial Video Products – Transcendent Series NVRs Add Cruise Group Ø Click “Add Cruise” to add the cruise, or click to extend the cruise list and then click to add the cruise. After that, click “Play” on the left panel as shown to play the cruise lines in sequence.

  • Page 66: Task Settings

    VITEK Industrial Video Products – Transcendent Series NVRs Play or Stop Trace Ø Select the trace and click to play the trace; click to stop the trace. Modify the Trace Name Ø On the left panel, enter new trace name and click to modify and save the trace name.
  • Page 67 VITEK Industrial Video Products – Transcendent Series NVRs ① Select a PTZ camera. ② Select function, such as preset, cruise, trace, random scanning, etc. ③ Select a name, such as preset name, cruise name, etc. ④ Select the start and end time.

  • Page 68: Record & Disk Management

    VITEK Industrial Video Products – Transcendent Series NVRs 7 Record & Disk Management 7.1 Record Configuration 7.1.1 Mode Configuration Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click StartàSettingsàRecordàMode Settings to go to the mode settings interface. You can set the record time under the “Manual Record Settings”...
  • Page 69 VITEK Industrial Video Products – Transcendent Series NVRs record mode list (in the window, the checked modes can be shown in the record mode list while the unchecked modes cannot. Select one auto mode to pop up the corresponding window. Set the encode, GOP, resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click “OK”...

  • Page 70: Schedule Settings

    VITEK Industrial Video Products – Transcendent Series NVRs Customization Mode Ø If the customization mode is selected, you need to set the record schedules of each camera. See 7.1.2 Schedule Settings for details. In this interface, you can also set the record period of the manual record in the live view interface.
  • Page 71 VITEK Industrial Video Products – Transcendent Series NVRs Click “Add” to add a new schedule. Refer to the picture below. Set the schedule name and schedule time and then click “Add” to save the schedule. You can set day schedule or week schedule.
  • Page 72 VITEK Industrial Video Products – Transcendent Series NVRs Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area. You can manually set the record start time and end time. Click and then click “Manual”...

  • Page 73: Advanced Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs Click “All” to set all week recording; click “Reverse” to swap the selected and unselected time in a week; click “Clear All” to clear all the selected area in a week. 7.1.3 Advanced Configuration Click StartàSettingsàRecordàAdvanced to go to the following interface.

  • Page 74: Record Mode

    VITEK Industrial Video Products – Transcendent Series NVRs 7.3 Record Mode 7.3.1 Manual Recording Method One: Click on the tool bar at the bottom of the live preview interface to enable recording of the camera. Method Two: Go to live preview interface and then right-click camera image to pop-up a menu and click “Manually Record On”...

  • Page 75: Disk

    VITEK Industrial Video Products – Transcendent Series NVRs 7.4 Disk 7.4.1 Disk Management Disk Management Ø Click StartàSettingsàDiskàDisk Management to go to disk management interface. You can view the NVR’s disk number and disk status and so on in the interface. Click “Format” to format the HDD.
  • Page 76 VITEK Industrial Video Products – Transcendent Series NVRs ② Create an array. (Go to StartàSettingsàDiskàPhysical Disk) a. Click “Physical Disk” tab and then click “Create an array”. b. Enter the user name and password which has the authority of Disk Management. If you don’t have one, you can use the user name and password that you login with (the default username: admin;...
  • Page 77 VITEK Industrial Video Products – Transcendent Series NVRs e. Select a hot spare. In the physical disk interface, select the disk that is not in the array and click as shown in the following pictures. RAID Rebuilding If one of your disks is broken, the disk indicator on the front panel will turn red. Of course, a warning tip will pop up if the relevant HDD exception alarm is set.

  • Page 78: Storage Mode Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs 7.4.2 Storage Mode Configuration Click StartàSettingsàDiskàStorage Mode to go to the interface as shown below. For example, there are four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group).

  • Page 79: View Disk And S.m.a.r.t. Information

    VITEK Industrial Video Products – Transcendent Series NVRs Click to add the backup HDD. After account verification, select a HDD and then this HDD will be removed from the normal group to the backup group. Simultaneously, it will be formatted. Please back up all data of this HDD in advance when you want to move it to the backup group.

  • Page 80: Playback & Backup

    VITEK Industrial Video Products – Transcendent Series NVRs 8 Playback & Backup 8.1 Instant Playback Click on the tool bar at the bottom of the preview camera window to play back the recording (click on the tool bar at the bottom of the live preview interface to set the default playback time).
  • Page 81 VITEK Industrial Video Products – Transcendent Series NVRs On the panel on the right you will see the channel number and the recorded data coded by color. The bar that runs across them represents the playback time being viewed. You can move this bar around to export, highlight a section of the desired recording, click export and follow the prompts.
  • Page 82 VITEK Industrial Video Products – Transcendent Series NVRs Button Meaning Fast Play button. Click it to increase the playing speed. Previous frame button. It works only when the forward playing is paused in single screen mode. Next frame button. It works only when the forward playing is paused in single screen mode.
  • Page 83 VITEK Industrial Video Products – Transcendent Series NVRs Click to go to the zoom in interface. The zoom in interface is similar to that of the camera window in the live preview interface. Click to pause the record playing; click...

  • Page 84: Smart Playback

    VITEK Industrial Video Products – Transcendent Series NVRs In the backup window, you can select backup path and format. Then click “Backup”. Please select “Encryption” or “No Encryption” as needed. After that, click “OK” to start backup. 8.3 Smart Playback In the playback interface, click to go to the smart playback interface as shown below.

  • Page 85: Smart Playback Settings

    VITEK Industrial Video Products – Transcendent Series NVRs The descriptions of buttons in the smart playback interface Button Description Full screen motion button. Draw grid. You can search the record of motion detection in the pre-defined area. Draw line. You can search the record of crossing the line after drawing the line.

  • Page 86: Smart Playback Based On Motion Detection

    VITEK Industrial Video Products – Transcendent Series NVRs 8.3.2 Smart Playback Based on Motion Detection Smart Playback by Drawing Grid Click and draw a rectangle in the desired area. Then the system will automatically search the recorded files of this area. The cyan blocks indicate that there are intelligent recording files.

  • Page 87: Smart Playback By Face Search

    VITEK Industrial Video Products – Transcendent Series NVRs 8.3.3 Smart Playback by Face Search Before starting this function, the face recognition function should be enabled. Please see Face Recognition for details. If your device doesn’t support such function, please skip the following instructions.

  • Page 88: Smart Search By License Plate

    VITEK Industrial Video Products – Transcendent Series NVRs Search by group: Choose “Face Database” and then click “More” to choose one or more groups. Move the cursor to the time block where the record exists and click to play those records.

  • Page 89: Record Search, Playback & Backup

    VITEK Industrial Video Products – Transcendent Series NVRs 8.4 Record Search, Playback & Backup The recorded data and the snapped pictures can be backed up through network, USB (U disk or USB mobile HDD) or e-SATA (only available for some models). The file system of the backup devices should be FAT32 format.
  • Page 90 VITEK Industrial Video Products – Transcendent Series NVRs ② Select one camera in the interface and then click the “Open” button. ③ Click the image box to play the recording in a small playback box on the left side of the interface (the box which has image inside indicates that the recording data exist).

  • Page 91: Search, Playback & Backup By Time

    VITEK Industrial Video Products – Transcendent Series NVRs ⑤ Click “Playback” to play the recording in the playback interface (refer to 8.2 Playback Interface Introduction for details). Click “Close” to close the interface. Time Slice Mode Selecting: Method One: Click “Year”, “Month” or “Day” button under the recording time scale to select the time slice mode.

  • Page 92: Search, Playback & Backup By Event

    VITEK Industrial Video Products – Transcendent Series NVRs interface. 8.4.3 Search, Playback & Backup by Event Some models may support searching POS event. ① Click StartàSearch and BackupàBy Event to go to “By Event” tab as shown below. ② Check the event type in the interface as required.

  • Page 93: Search & Playback By Tag

    VITEK Industrial Video Products – Transcendent Series NVRs ④ Check cameras on the left side of the interface or check “All” to select all the cameras and then click to search the recording. The searched recording will be displayed in the list.

  • Page 94: View Backup Status

    VITEK Industrial Video Products – Transcendent Series NVRs 8.4.6 View Backup Status Click StartàSearch and BackupàBackup Status or click on the tool bar at the bottom of the playback interface to view the backup status.

  • Page 95: Ai Event Management

    VITEK Industrial Video Products – Transcendent Series NVRs 9 AI Event Management 9.1 Face Recognition Only some models support alarm based on face match. If your device does not support face recognition function, please skip the face database, and face recognition instructions.
  • Page 96 VITEK Industrial Video Products – Transcendent Series NVRs AI function also can be added and used to detect faces through NVR. But if face detection by NVR is enabled for one camera (without AI), the people/vehicle perimeter detection cannot be enabled simultaneously, and vice-versa.

  • Page 97: Face Database Management

    VITEK Industrial Video Products – Transcendent Series NVRs Face Detection Alarm Linkage Configuration: Trigger “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” and “E-mail” as needed. Record: Click the “Configure” button to pop up the window. Select camera on the left side and then click to set the camera as the trigger camera.
  • Page 98 VITEK Industrial Video Products – Transcendent Series NVRs For the first time, you can click “+” or “Add Group” to add groups. ② To add targets for each group. l Select a list and then click to expand the list as shown below.
  • Page 99 VITEK Industrial Video Products – Transcendent Series NVRs Add external faces Save the face pictures in your USB storage device and then insert the USB storage device into the USB port of the NVR. Go to the face database interface. Click to expand the group and then click “Add”.

  • Page 100: Face Recognition Settings

    VITEK Industrial Video Products – Transcendent Series NVRs l Import and Export Face database Insert your mobile storage device into the USB interface of the NVR and then click “Import and Export” to import or export the face database settings.
  • Page 101 VITEK Industrial Video Products – Transcendent Series NVRs ② Set the alarm linkage items of successful recognition. l Select one or more face groups and then choose the schedule. Click “Manage” to set the schedule. l Set the text prompt and voice prompt. When the captured face is matched successfully, the text will appear on the right of the live view interface and broadcast the audio.

  • Page 102: License Plate Recognition

    VITEK Industrial Video Products – Transcendent Series NVRs l Configure the schedule l Set the text prompt and voice prompt. The text will show on the captured picture and the voice will be broadcasted when detecting a stranger. l Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail and pop-up message box as needed.

  • Page 103: Plate Database Management

    VITEK Industrial Video Products – Transcendent Series NVRs Set the alarm area. Click “Draw” and then drag the mouse to draw a detection area. Click “Clear” to delete the alarm area. 9.2.2 Plate Database Management In the LPR interface, click the “Plate Database” tab to go to the plate database management interface as shown below.

  • Page 104: License Plate Recognition Settings

    VITEK Industrial Video Products – Transcendent Series NVRs ① Click to extend the group. Click “Add Plate” to pop up the following window. ② Enter the plate, vehicle owner and mobile phone number. ③ Select the vehicle type and group.

  • Page 105: Tripwire

    VITEK Industrial Video Products – Transcendent Series NVRs ② Set the successful recognition alarm linkage. l Select one or more plate groups and then choose the schedule. Click “Manage” to set the schedule. l Set the text prompt. When the captured plate is matched successfully, the text will appear on the right of the live view interface.
  • Page 106 VITEK Industrial Video Products – Transcendent Series NVRs ② Select the camera, enable tripwire detection by IPC and set the duration. Note: Some models may support tripwire detection by NVR. ③ Select the direction. Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the target that crosses over the alert line.

  • Page 107: Intrusion Detection

    VITEK Industrial Video Products – Transcendent Series NVRs 9.4 Intrusion Detection Intrusion Detection Configuration: Alarms will be triggered if the people or vehicles intrude into the pre-defined area. ① Click StartàSettingsàAI/Event àAI EventàIntrusion to go to the following interface. ② Select the camera, enable the intrusion detection by IPC and set the duration.

  • Page 108: Abandoned/Missing Object Detection

    VITEK Industrial Video Products – Transcendent Series NVRs ⑨ Click “Apply” to save the settings. 9.5 Abandoned/Missing Object Detection ① Click StartàSettingsàAI/EventàAI EventàObject Abandoned/Missing to go to the following interface. ② Select the camera, enable the object detection, and set the duration and detect type. There are two detection types: Abandoned object and missing object.

  • Page 109: Line Crossing Counting

    VITEK Industrial Video Products – Transcendent Series NVRs Crowd Density Configuration: Alarms will be triggered if the crowd density exceeds the set threshold value in the pre-defined area. ① Click StartàSettingsàAI/EventàAI EventàCrowd Density to go to the following interface. ② Select the camera, enable the crowd density detection and set the duration, refresh frequency and alarm threshold.
  • Page 110 VITEK Industrial Video Products – Transcendent Series NVRs video by detecting, tracking, and counting the head shapes of people. Note: Only some specific IPCs may support this function. ① Click StartàSettingsàAI/EventàAI EventàLine Crossing Counting to go to the following interface.

  • Page 111: Exception Detection

    VITEK Industrial Video Products – Transcendent Series NVRs ② Enable line crossing counting. ③ Check “Draw line” and then drag the mouse on the small window to draw the crossing line. Uncheck “Draw line” to finish the drawing. Click “Clear” to delete the alert line.
  • Page 112 VITEK Industrial Video Products – Transcendent Series NVRs ② Select the camera and detection duration and then enable the relevant detection as needed. Scene Change: Alarms will be triggered if the scene of the monitor video has changed. Video Blurred: Alarms will be triggered if the video becomes blurry.

  • Page 113: Intelligent Analytics

    VITEK Industrial Video Products – Transcendent Series NVRs 10 Intelligent Analytics 10.1 Target Detection View Only some models support target detection view. If your device does not support it, please skip the following instructions. 10.1.1 Human Body/Vehicle Detection View Only when the camera supports human body/vehicle detection, can you view the real-time captured people or vehicle pictures.
  • Page 114 VITEK Industrial Video Products – Transcendent Series NVRs them, please skip the following instructions. The setting steps are as follow: ① Enable face detection function (see 9.1.1 Face Detection Settings for details). ② Enable face recognition function and set the alarm linkage items (see 9.1.3 Face Recognition Settings for details).
  • Page 115 VITEK Industrial Video Products – Transcendent Series NVRs Before registering target face pictures, please add groups for them in advance (see 9.1.2 Face Database Management for details). After the face pictures are registered, the system will compare them automatically once the...
  • Page 116 VITEK Industrial Video Products – Transcendent Series NVRs Double click the face picture to see the snapshot details, such as snapshot picture, original image, snapshot time and camera. Click “more” and then a dropdown list will display. Click “Register” to register the current snapshot. Click “Search” to go to face search interface. Click “Playback”...

  • Page 117: License Plate Detection/Recognition View

    VITEK Industrial Video Products – Transcendent Series NVRs If “Target box” is clicked, you will see the target traced by a little red box. If “Rule Line and Area” is checked, you will see the rule line of tripwire detection and detection area of intrusion detection displayed on the screen.
  • Page 118 VITEK Industrial Video Products – Transcendent Series NVRs Put the cursor on the captured plate picture and then click to register this plate as shown below. 999999 Click to view the captured detail information. Click to quickly enter the vehicle search interface.

  • Page 119: Smart Search

    VITEK Industrial Video Products – Transcendent Series NVRs as shown below. When the plate is captured, it will be displayed on the right panel. If this plate is successfully matched, it will show “successful” beside the plate picture. The strange plate will show “Strange plate”...
  • Page 120 VITEK Industrial Video Products – Transcendent Series NVRs ② Click to choose face detection cameras. ③ Select all events, successful recognition, or stranger. ④ Click “Search” to search face pictures. You can view face pictures by time or by camera.
  • Page 121 VITEK Industrial Video Products – Transcendent Series NVRs Click “List” to view the snapshot information list. Click to view the detail information; click to back up the image. Face Search by Face Ø In the face picture search interface, click “By Face” to go to the following interface.
  • Page 122 VITEK Industrial Video Products – Transcendent Series NVRs To add target face from recent a. Choose the face. b. Click “Select Face”. To add target face from face database: a. Click “More” to choose groups. b. Select a target face and click “Select Face”.
  • Page 123 VITEK Industrial Video Products – Transcendent Series NVRs View Image by List Click “List” tab to view images by time as shown below. Click the searched image to play. Click to view the detail information of the compared target face.

  • Page 124: Track Playback

    VITEK Industrial Video Products – Transcendent Series NVRs 10.2.2 Track Playback Select “Track” to go to the following interface. Note: Only when two or more cameras detect this person, can his/her track can be viewed here. Descriptions of buttons on the track interface...
  • Page 125 VITEK Industrial Video Products – Transcendent Series NVRs Click to switch play speed. 1x and 2x can be switched. Click to view event list. Click one item to play this event. Click “Exchange Window” to switch the position of the map window and the playback window.

  • Page 126: Face Search By Snapshot

    VITEK Industrial Video Products – Transcendent Series NVRs 10.2.3 Face Search by Snapshot In the live or playback interface, click on a face detection camera and then select on the toolbar. This will bring the following window. Drag the mouse to select a face and then click “Search by Face” to go to the face search by face interface.

  • Page 127: Vehicle Search

    VITEK Industrial Video Products – Transcendent Series NVRs Click the searched picture to play the recording in the small window. Select pictures and check “Backup Picture” and/or “Backup Record” and then click “Backup” to back up the pictures and /or records. Click “Original” to view the captured original pictures. Click “List” to view the file list of the captured pictures.
  • Page 128 VITEK Industrial Video Products – Transcendent Series NVRs Click a searched vehicle picture to play it in the small window. Select vehicle pictures and check “Backup Picture” and/or “Backup Record” and then click “Backup” to back up the pictures and /or records.

  • Page 129: Combination Search

    VITEK Industrial Video Products – Transcendent Series NVRs Click “Track” to view the track of the vehicle. Note: Only one plate can be traced at a time and there must be two or more LPR cameras detect this vehicle, thus, you can view the track of this vehicle.

  • Page 130: Face Attendance

    VITEK Industrial Video Products – Transcendent Series NVRs View People Information: Note: The person information includes face information and figure information. ① Select the time. ② Select cameras. ③ Select events as needed, such as face detection, face match, intrusion, and tripwire.

  • Page 131: Face Check-In

    VITEK Industrial Video Products – Transcendent Series NVRs Click “Search” to view the attendance state. ④ If some specific person’s attendance state needs to be known, you can click “Advanced” and then enter the name and choose the type. Click “Export” to export the searched attendance information.
  • Page 132 VITEK Industrial Video Products – Transcendent Series NVRs ① Click behind camera and group to choose the desired cameras and groups. ② Set the check-in date. You can choose day, week, month and today or customize the time period. ③ Set the start time and the end time of face check-in.

  • Page 133: General Event Management

    VITEK Industrial Video Products – Transcendent Series NVRs 11 General Event Management 11.1 Sensor Alarm To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.

  • Page 134: Motion Alarm

    VITEK Industrial Video Products – Transcendent Series NVRs The configuration steps of the above-mentioned alarm linkages are as follows. Duration: Refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects motion, it will go to alarm and would not detect any other motion (specific to camera) for 10 seconds.

  • Page 135: Motion Alarm Handling Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs ② Select the camera, enable the motion, and set the sensitivity and duration of the camera. Sensitivity: The higher the value is, the more sensitive it is to motion. You should adjust the value according to the practical conditions since the sensitivity is influenced by color and time (day or night).

  • Page 136: Combination Alarm

    VITEK Industrial Video Products – Transcendent Series NVRs ② Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop- up Video” and “E-mail”. The alarm handling setting of motion alarm is similar to that of the sensor alarm (see 11.1 Sensor Alarm for details).

  • Page 137: Exception Alarm Settings

    VITEK Industrial Video Products – Transcendent Series NVRs ③ Click “Apply” to save the settings. 11.4.2 Exception Alarm Settings ① Click StartàSettingsàAI/EventàException Alarm to go to the interface as shown below. ② Enable or disable “Push”, “Alarm-out”, “Buzzer”, “Pop-up Message Box” and “E-mail”.

  • Page 138: E-Mail

    VITEK Industrial Video Products – Transcendent Series NVRs 11.5.2 E-mail Click StartàSettingsàAI/EventàEvent NotificationàE-mail to go to the e-mail configuration interface. Set the e-mail address of the recipients. See 13.1.5 E-mail Configuration for details. 11.5.3 Display Click StartàSettingsàAI/EventàEvent NotificationàDisplay to go to the display configuration interface.

  • Page 139: Audio

    VITEK Industrial Video Products – Transcendent Series NVRs 11.5.6 Audio Click StartàSettingsà AI/Event àEvent NotificationàAudio to go to the interface as shown below. Camera audio settings: For perimeter alert cameras, voice broadcast can be set up. Select the camera, voice, broadcast times, volume, and language.
  • Page 140 VITEK Industrial Video Products – Transcendent Series NVRs Select the camera and then enable audio device. Audio In Device: Please select it according to the actual device configuration. Speaker (built-in): Please select its function as needed. LOUT: External audio output device, please select its function as needed.

  • Page 141: Light

    VITEK Industrial Video Products – Transcendent Series NVRs 11.5.7 Light Click StartàSettingsàAlarmàEvent NotificationàLight to go to the interface as shown below. In this interface, you can set the light flashing time and frequency when an alarm is triggered. 11.5.8 Alarm Server Go to AlarmàAlarm Server interface as shown below.
  • Page 142 VITEK Industrial Video Products – Transcendent Series NVRs live preview interface to view the alarm status. Click “Clear” to stop the buzzer when the buzzer alarm happens. Click to view the detail information as shown below. If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page.

  • Page 143: Account & Permission Management

    VITEK Industrial Video Products – Transcendent Series NVRs 12 Account & Permission Management 12.1 Account Management Click StartàSettingsàAccount and AuthorityàAccountàEdit User to go to the interface as shown below. Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①.

  • Page 144: Edit User

    VITEK Industrial Video Products – Transcendent Series NVRs ② Set the username, password, and group. User can also set the pattern lock here. The e-mail address and MAC address are optional (enter the MAC address after you check it). Click “Add”...
  • Page 145 VITEK Industrial Video Products – Transcendent Series NVRs Some models may not support this function. Click “Modify Pattern Lock” to pop up a window. Input current password and then check “Enable” to set pattern lock. Recover Password Ø Click “Recover Password” to reset the password to 123456.

  • Page 146: User Login & Logout

    VITEK Industrial Video Products – Transcendent Series NVRs 12.2 User Login & Logout Login: Click StartàLogin or directly click the preview interface and then select username and enter the password in the popup window. Click the “Login” button to log into the system.

  • Page 147: Edit Permission Group

    VITEK Industrial Video Products – Transcendent Series NVRs Click to add permission group. Set the group name, check the permissions as required and then set the “Local” and “Remote” permissions. Click “Add” to save the settings. 12.3.2 Edit Permission Group Go to “Edit Permission Group”...

  • Page 148: Preview On Logout

    VITEK Industrial Video Products – Transcendent Series NVRs ② Check “Enable” and then choose “Enable Allow List (white list)” or “Enable Block List (the PC client of which the IP address is in the white list can access NVR remotely while the PC client in the block list cannot).

  • Page 149: Password Security

    VITEK Industrial Video Products – Transcendent Series NVRs 12.7 Password Security Click StartàSettingsàAccount and AuthorityàSecurityàPassword Security to go to the following interface. In this interface, you can set the level and expiration time of the password. 12.8 View Online User Click StartàSettingsàAccount and AuthorityàUser Status to view the online user information...

  • Page 150: Device Management

    VITEK Industrial Video Products – Transcendent Series NVRs 13 Device Management 13.1 Network Configuration 13.1.1 TCP/IP Configuration Click StartàSettingsàNetworkàTCP/IP to go to the following interface. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically” to get the network addresses automatically, or manually enter the network addresses.
  • Page 151 VITEK Industrial Video Products – Transcendent Series NVRs Multiple Ethernet Ports Setting If the NVR has two network ports or above, you can select the network work pattern as required. TOE: A technology for improving network transmission speed. Please enable it according to the actual network situation.
  • Page 152 VITEK Industrial Video Products – Transcendent Series NVRs Multiple Address Setting: If “Multiple Address Setting” is selected, the IP addresses of the two Ethernet ports should be set respectively. Refer to the picture as shown below. Check “Obtain an IPv4 address automatically”, “Obtain an IPv6 address automatically” and “Obtain DNS automatically”...

  • Page 153: Port Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs 13.1.2 Port Configuration Click StartàSettingsàNetworkàPort to go to the interface as shown below. Enter the HTTP port, HTTPS port, server port and POS port of the NVR, and then click “Apply” to save the settings.
  • Page 154 VITEK Industrial Video Products – Transcendent Series NVRs * If there is a signed certificate, click “Browse” to select it and then click “Install” to install it. * Click “Create a certificate request” to enter the following interface. Click “Create” to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature.

  • Page 155: Pppoe Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs stream; chID indicators channel ID). Examples: ① Enable RTSP and “Anonymous”. Then open the VLC player and enter the address (for example: rtsp://192.168.1.88:554/chID=1&streamType=main) in the network address bar of the VLC player. Then you can view the video of channel 1.
  • Page 156 VITEK Industrial Video Products – Transcendent Series NVRs the effectiveness of the input information. Click “Apply” to save the settings. You will have to enter the server address and domain name if some DDNS types are selected. Go to the relative DNS website to register domain name and then enter the registered domain information here).

  • Page 157: E-Mail Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs ④ After you successfully request your domain name, you will see your domain name information in the list. ⑤ Click StartàSettingsàNetworkàDDNS to go to DDNS setting interface. Enable DDNS and then select the www.vitekivpddns.com DDNS type. Enter the registered username, password and domain name and then click “Apply”.
  • Page 158 VITEK Industrial Video Products – Transcendent Series NVRs Enter the sender’s name, e-mail address, SMTP server and SMTP port (you can click “Default” to reset the SMTP port to the default value) and then enable or disable the SSL and attaching image.

  • Page 159: Upnp Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs 13.1.6 UPnP Configuration By UPnP you can access the NVR through web client which is in WAN via router without port mapping. ① Click StartàSettingsàNetworkàUPnP to go to the following interface. ② Make sure the router supports UPnP function and the UPnP is enabled in the router.

  • Page 160: Nat Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs Protocol type and EAPOL version: Please use the default settings. Username and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

  • Page 161: Snmp

    VITEK Industrial Video Products – Transcendent Series NVRs Platform Access ① Set “Access Type” as “Platform Software” and select “Enable” as shown below. ② Check the IP address and port of the transfer media server in the VMS 2.0. The default server port for auto report is 2009.

  • Page 162: Cloud Upgrade

    VITEK Industrial Video Products – Transcendent Series NVRs ② Check SNMPv1or SNMPv2 to enable this function. ③ Set the port of the SNMP. ④ Set the trap address and the trap port. ⑤ Click “Apply” to save the settings. Trap Address: The IP address of SNMP host.

  • Page 163: View Network Status

    VITEK Industrial Video Products – Transcendent Series NVRs upgrade from the cloud server. Please do not power down during the upgrade process. ② 13.1.13 View Network Status Click StartàSettingsàNetworkàNetwork Status to view the network status or click the tool bar at the bottom of the live preview interface to view network status conveniently.

  • Page 164: Date And Time Configuration

    VITEK Industrial Video Products – Transcendent Series NVRs Main Output: Enable “Fixed display resolution” and then select the main output as needed. Note: You can set the resolutions of the main output and secondary output respectively if the NVR has dual outputs. Refer to the picture as shown below.

  • Page 165: Device Software Upgrade

    VITEK Industrial Video Products – Transcendent Series NVRs Note: Resetting to the factory default settings will not change time zone. 13.4 Device Software Upgrade Upgrade You can click StartàSettingsàSystemàInformationàBasic to view MCU, kernel version and firmware version and so on. Before upgrade, please get the upgrade file from your dealer.

  • Page 166: Backup And Restore

    VITEK Industrial Video Products – Transcendent Series NVRs Note: The system will automatically check the latest version once a day if auto-check for updates is enabled. 13.5 Backup and Restore You can back up the configuration file of the NVR by exporting the file to other storage devices;...

  • Page 167: View Log

    VITEK Industrial Video Products – Transcendent Series NVRs 13.7 View Log Click StartàSettingsàSystemàMaintenanceàView Log to go to the log view interface. Select the log main type, click to set start time and end time and then click “Search”. The searched log files will be displayed in the list.

  • Page 168: Remote Surveillance

    VITEK Industrial Video Products – Transcendent Series NVRs 14 Remote Surveillance 14.1 Mobile Client Surveillance ① Enable NAT in the NVR. Refer to 13.1.8 NAT Configuration for details. ② Download and install the mobile client “Transcendent viewer” into the mobile device with a Android or iOS system.

  • Page 169: Web Wan Access

    VITEK Industrial Video Products – Transcendent Series NVRs Notes: 1. Please make sure that the IP address of the NVR and the computer are both in the same local network segment. For example, supposing that the IP address of the computer is 192.168.1.41, the IP address of the NVR should be set to 192.168.1.XXX.

  • Page 170: Web Remote Control

    VITEK Industrial Video Products – Transcendent Series NVRs Enter the serial number (click on the tool bar at the bottom of the live preview interface to see the serial number of the NVR), user name (the user name of the NVR, admin by default) and password (the password of the NVR, 123456 by default) of the NVR, select the display language on the top right corner of the interface and then click “Login”...

  • Page 171: Remote Preview

    VITEK Industrial Video Products – Transcendent Series NVRs password and then set a new password in the popup window. Click “OK” to save the new password. Local Settings: click to change the local settings. Set the snapshot number and click “Browse”...
  • Page 172 VITEK Industrial Video Products – Transcendent Series NVRs and the online cameras. For instance, the left number 3 in on the left panel stands for the number of online cameras; the right number 4 stands for the number of all the added cameras.

  • Page 173: Remote Playback

    VITEK Industrial Video Products – Transcendent Series NVRs Operation panel introduction: Button Meaning Click to take a snapshot. Click to start record to computer Click to start record to the NVR. Click to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area.

  • Page 174: Remote Search And Backup

    VITEK Industrial Video Products – Transcendent Series NVRs Introduction of playback control buttons: Button Meaning Stop button. Rewind button. Click it to play video backward. Play button. Click it to play video forward. Pause button. Deceleration button. Click it to decrease the playing speed.

  • Page 175: Intelligent Analysis

    VITEK Industrial Video Products – Transcendent Series NVRs 14.4.4 Intelligent Analysis This function is only available for the model with VCA (video content analysis) functions. Click “Intelligent Analysis” in the remote interface to configure smart search, statistics, face database, face attendance and face check in. All of these settings are similar to that of the NVR.

  • Page 176: Appendix A Faq

    VITEK Industrial Video Products – Transcendent Series NVRs Appendix A FAQ Q1. Why can’t I find the HDD? Please check the power and SATA data cables of the HDD to make sure they are well connected. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them.
  • Page 177 VITEK Industrial Video Products – Transcendent Series NVRs NOTES Q6. The IP camera which connects to the PoE port of the NVR cannot be displayed automatically in the camera list, why? Please check whether the resource of the PoE port is occupied by another IP camera that is added through network.
  • Page 178 Detailed Specifications VT-TNR414P(2) Video Input / Resolution 4 IP Channels up to 8 MegaPixel Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Acess Recording Compression H.265 / H.264 Embedded Linux...
  • Page 179 Detailed Specifications VT-TNR818P(2) Video Input / Resolution 8 IP Channels up to 8 MegaPixel Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Acess Recording Compression H.265 / H.264 Embedded Linux...
  • Page 180 Detailed Specifications VT-TNR818PF Video Input / Resolution 8 IP Channels up to 8 MegaPixel Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA Multi Operation Pentaplex: Live Disp./Record/Playback/Backup/Remote Access Recording Compression H.265 / H.264 Embedded Linux Recording 240fps (30fps per channel) 2-Way Audio / Audio Over IP YES / 8 (Camera Dependent)
  • Page 181 Detailed Specifications VT-TNR1646PF Video Input / Resolution 16 IP Channels up to 8 MegaPixel Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access Recording Compression H.265 / H.264 Embedded Linux...
  • Page 182 Detailed Specifications VT-TNR3216PF Video Input / Resolution 32 IP Channels up to 8 MegaPixel Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Acess Recording Compression H.265 / H.264 Embedded Linux...
  • Page 183 Detailed Specifications VT-TNR6480E1 Video Inputs / Resolution 64 Channels Supporting up to 8 MegaPixels @ 30fps Max Main Monitor Output HDMI × 2 : 1 × 3840 × 2160 / 1920 × 1080 / 1280 × 1024 , 1 × 1920 × 1080 / 1280 ×...
  • Page 184 Detailed Specifications VT-TNV128E1 Network Input 128 IP Channels up to 12 MegaPixel, 640MbPS Video Output HDMI-1 up to 3840 × 2160 @ 60fps HDMI-2~4 up to 1920 × 1080 VGA up to 1920 × 1080 Recording Compression H.265+ / H.265 / H.264 Embedded Linux Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF /...
  • Page 185 NOTES...
  • Page 186 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
