Summary of Contents for Thought Technology eVu TPS

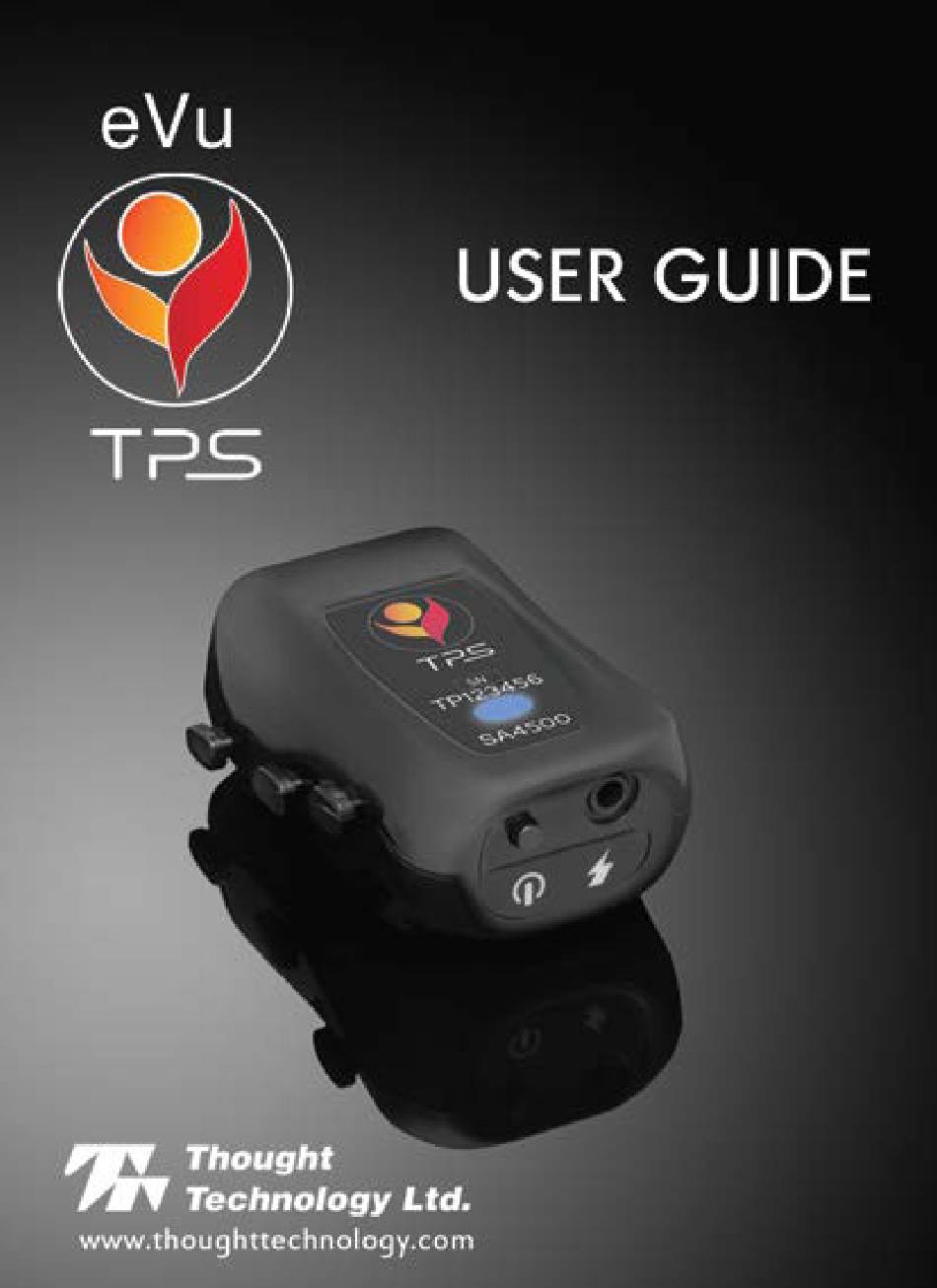

  • Page 2 Thought Technology Ltd. 8205 Montreal/Toronto Blvd., Suite 223, Montreal West, Quebec, Canada H4X 1N1 +1 (514) 489-8251 mail@thoughttechnology.com Product eVu TPS Name: T4500 EMERGO EUROPE Molens traat 15, 2513 BH The Hague, The Netherlands eVu TPS® User Guide...

  • Page 3: Table Of Contents

    Placing Orders and Technical Support ......27 Warranty ............... 28 Disposal ................. 29 Returning Equipment ............ 29 Service Return Form ............32 Manual No. SA4504 (June 2016) © 2016 copyright Thought Technology Ltd. All rights reserved. eVu TPS® User Guide...

  • Page 4: About This User Guide

    About this User Guide Audience This User Guide is intended for eVu TPS® users (licensed health care practitioners) who are trained and qualified in Biofeedback techniques. Experience in this field and knowledge of commonly used equipment and standard practices are prerequisites.

  • Page 5: Labeling Symbols

    [Enter / Exit] Stand-by mode Type BF Applied Parts Keep dry Keep away from sunlight Fragile, handle with care Waste Electrical Items bearing this symbol must not be disposed of with general household waste. Dispose according to local recycling initiatives. eVu TPS® User Guide...
  • Page 6 Indicates that the product is manufactured in conformity with the Medical Device Directive and other applicable European Community directives. Authorized Representative in the European Community Manufacturer Date of manufacture Catalogue number Warning! Not suitable for children under 3 years eVu TPS® User Guide...

  • Page 7: Product Description

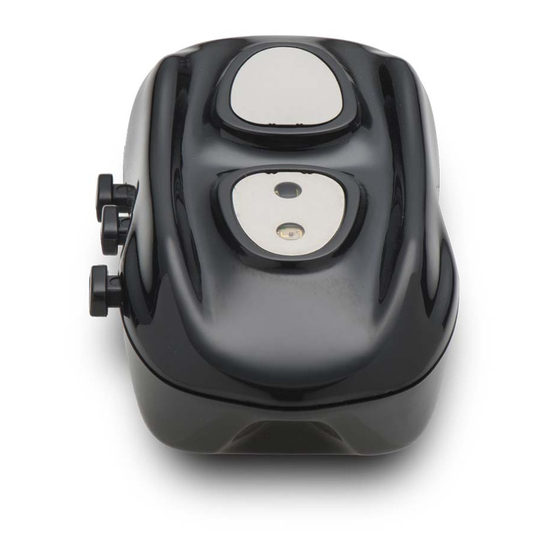

    Product Description Overview The eVu TPS® system contains a miniaturized self- contained battery-operated finger-worn biofeedback device. The TPS senses skin conductance, skin temperature, and heart rate by photoplethysmography, transmitting these signals wirelessly using Bluetooth. The TPS works with a software app on a mobile device to display the signal.
  • Page 8 The usage of the device requires an Android app which can be found at the following link www.evutps.com. The app runs on an Android platform using Version 4.4 or above. The recommended tablet / phone screen size is from 4.5 to 9.7 inch. eVu TPS® User Guide...
  • Page 9 3 (X, Y, Z) Axes Wireless Bluetooth Classic communication OPERATING ENVIRONMENTAL CONDITIONS • EN/IEC 60601-1-11 Standard • +5˚C – +40˚C Temperature • 15 % – 93% (non- Relative condensing) humidity 700 hPa – 1060 hPa • Atmospheric pressure eVu TPS® User Guide...
  • Page 10 EN/IEC 60601-1 and • Standard IEC60601-1-11 Internally powered • Type of equipment protection CLASS II (when connected to against electric Charger) shock Type BF Applied Parts • Degree of (TPS with built-in sensor) protection against electric shock eVu TPS® User Guide...
  • Page 11 WITH AIR OR WITH OXYZEN mixtures OR NITROUS OXIDE • UL/IEC 60601-1 Charger Power Input: 100-240Vac, Rating (Medical 60/50Hz, 0.6A Grade Universal Output: 5Vdc, 1.2A Power Supply / AC Power Adapter) ELECTROMAGNETIC COMPATIBILITY • EN/IEC 60601-1-2 Standard eVu TPS® User Guide...
  • Page 12 Guidance and manufacturer's declaration – Electromagnetic emissions The eVu TPS is intended f or use in the electromagnetic environment specified below. The customer or the user of the eVu TPS should assure that it is used in such an environment. Electromagnetic environment –...
  • Page 13 Guidance and manufacturer’s declaration – electromagnetic immunity The eVu TPS is intended for use in the electromagnetic environment specified below. The customer or the user of the eVu TPS should assure that it is used in such an environment. Electromagnetic...

  • Page 14: Warnings And Precautions

    • Functionality is disabled during charging. To ensure safety, do not charge the device while wearing. • Do not immerse in water. • Do not connect to a patient undergoing MRI, electro-surgery or defibrillation. eVu TPS® User Guide...
  • Page 15 If you have any health concerns, consult your physician. PRECAUTIONS • The eVu TPS may be susceptible to electrostatic discharges (ESD) and radiated radio frequency (RF) fields. eVu TPS® User Guide...
  • Page 16 AC power cord on a regular basis. Ensure they are not damaged. If you detect damage or excessive heating, remove from the wall outlet immediately and contact Technical Support Thought Technology Ltd. or your local authorized distributor for replacement. eVu TPS® User Guide...
  • Page 17 • Do not leave a battery on prolonged charge when not in use. • Discard the device with built-in battery following your local waste management legislation and guidelines. The battery cannot be replaced. eVu TPS® User Guide...

  • Page 18: Maintenance And Care

    • To ensure safety, use only the charging adapter provided with the device. • Do not leave a battery on prolonged charge when not in use. eVu TPS® User Guide...
  • Page 19 • Discard the device with built-in battery following your local waste management legislation and guidelines. The battery cannot be replaced. eVu TPS® User Guide...

  • Page 20: Instructions For Use

    TPS sensor. Step 2: Place the TPS sensor on your finger so that the sensor label faces up and the ON button points toward your hand. It does not matter upon which finger the sensor is placed. eVu TPS® User Guide...
  • Page 21 When properly fastened, the fabric strap covers the TPS sensor logo, but the sensor light remains visible when the sensor is turned on. eVu TPS® User Guide...
  • Page 22 Exit pairing mode either by pairing with host (see below, Connecting TPS to Android phone) or by turning off the unit. • Blue LED slow blink: connected and transmitting. TPS Charging • Charging time: 2-3 hours • Battery life: 4-5 hours eVu TPS® User Guide...
  • Page 23 If TPS is already ON, press and hold the TPS power button until the blue LED starts blinking (when released it should continue blinking); this puts it in discovery mode. (If the TPS unit is off, eVu TPS® User Guide...
  • Page 24 Click that entry to pair your TPS unit with the phone. • Your phone and TPS unit are now paired. • The instructions for using the app are provided inside the application which can be downloaded from www.evutps.com. eVu TPS® User Guide...

  • Page 25: Troubleshooting

    Devices list on the phone / tablet, terminate the application. • Turn off the TPS. • Turn on the TPS again and relaunch the application. • If the problem persists, contact Technical Support or your local authorized distributor. eVu TPS® User Guide...
  • Page 26 10 seconds without entering discoverable mode or streaming. • Turn off the TPS. • Turn it back on. • If the error cannot be resolved, contact Technical Support or your local authorized distributor. eVu TPS® User Guide...

  • Page 27: Technical Support And Contacts

    Technical Support and Contacts Placing Orders and Technical Support Outside USA and Canada Tel: +1-514-489-8251 Fax: +1-514-489-8255 Toll-Free in USA and Canada Tel: 1-800-361-3651 E-Mail: mail@thoughttechnology.com Or contact your local authorized distributor. eVu TPS® User Guide...

  • Page 28: Warranty

    This warranty does not cover damage to TPS caused by obvious mechanical mistreatment of the system. This warranty does not apply to performance degradation of batteries. Please contact Technical Support at Thought Technology Ltd. to learn more. eVu TPS® User Guide...

  • Page 29: Disposal

    Before returning the equipment, please contact first our service department and get an authorization number (RA number). Canada and International  +1 514 489 8251 Toll Free USA and Canada  1 800 361 3651 service@thoughttechnology.com  eVu TPS® User Guide...
  • Page 30 All customs and duties charges will be billed to the customer if incurred by sending the unit to the wrong address. In the USA, ship insured to: Thought Technology Ltd. Cimetra LLC 8396 State Route 9 West Chazy, New York 12992 USA eVu TPS® User Guide...
  • Page 31 8205 Montreal/Toronto Blvd. Suite 223 Montreal West, Quebec Canada H4X1N1 For international: Package must be marked “Broker: • Livingston International – 133461”. Ship insured to: • Thought Technology Ltd. 8205 Montreal/Toronto Blvd. Suite 223 Montreal West, Quebec Canada H4X1N1 eVu TPS® User Guide...

  • Page 32: Service Return Form

    Be sure to call for authorization before returning any equipment! Copy and complete this form and include it with the unit(s). Include a copy of original invoice and return to the address in the Returning Equipment section. Name Company Address eVu TPS® User Guide...
  • Page 33 Phone No. Fax No. Date Purchased From Whom Model Name Serial No. Problem eVu TPS® User Guide...
