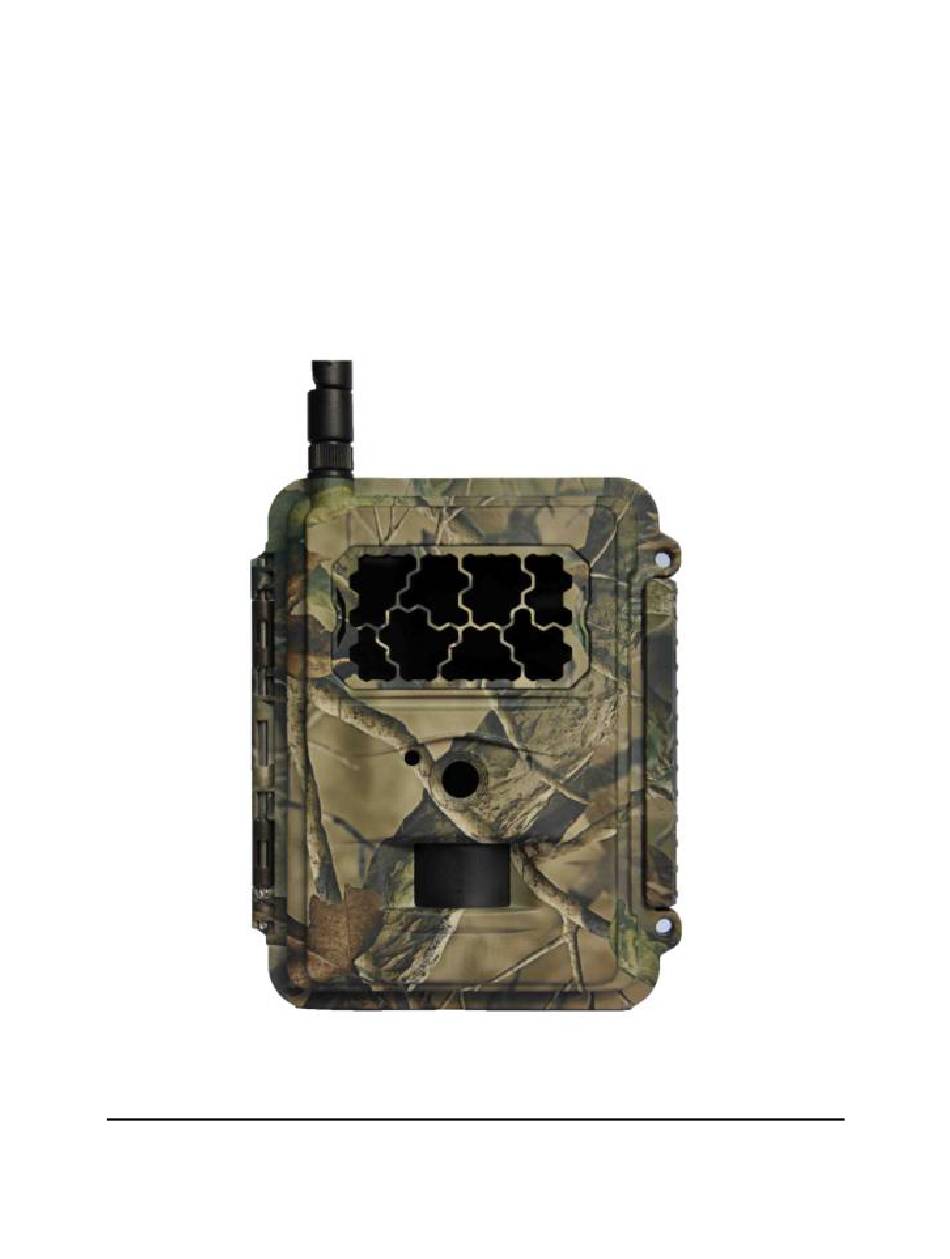

- Page 1 Trail Camera User’s Manual (for S378) V1.0 PLEASE READ CAREFULLY BEFORE USING CAMERA...
- Page 2 Package Contents Mounting Strap Trail Camera Antenna(wireless USB Cable camera only) User’s Manual Camera Body and Ports Antenna port, keep the black gasket ring Infrared Array Latch Lens Fresnel...
- Page 4 Keys & Buttons MENU: Enter the program menu in preview mode ▲▼◄►: Move between the menu items and change the value o Save parameter settings in menu mode o Play videos in playback mode Playback button : In live preview window, switch between playback and preview mode ...
- Page 5 Quick Start Make sure the power switch is at OFF position. Load the batteries into the battery compartment according to the polarities indicated. Load a set of 12 (recommended), 8 or 4 (emergency, left 2 columns) AA batteries. Or connect external power supply to the camera by using the correct cable and external battery.
- Page 6 to move between the tabs (submenu) which contains different group of items. Press the ▲ or ▼ buttons to activate the submenu and edit different items. Press ◄► to change the value. Press the OK button to save. Navigate to the Wireless tab; scroll down to enter the submenus. Change the Send Mode to Instant.
- Page 7 small amount of battery power. Therefore, please remove the batteries if the camera is not in use for an extended time. Menu Settings Switch the camera to SETUP mode & press MENU. Press ▲▼◄► to select the desired value, And then press OK to save. Setting Items Description Mode...
- Page 8 The camera can be set to operate only at specific time period. To enable this function select ON and press ok. The start-stop menu will then appear. This menu contains the settings for times to start and stop as Start-Stop well as the trigger interval and time lapse interval.
- Page 9 Format the SD card. This will erase all data Format on the SD card. This cannot be undone. Restore all settings to factory default Default values. System This option allows a 6 digits password to be Password set, keep it in mind. Recommend to use. Language Choose the menu language.
- Page 10 Turning the SMS command function always on or every n hours. On mode will increase Control the power usage. Copy the current network parameter Copy Para settings to the SD card. If your wireless carrier’s network Wireless parameters are not pre-programmed into (wireless the camera from the factory, you will need camera only)
- Page 11 Press Playback button to view the image (or video) which to be deleted. Press DEL button. Press LEFT or RIGHT to select Yes to execute or No to Exit. Files can’t be restored once deleted. How to use the Setup Tool（wireless camera only） If your wireless carrier’s network parameters are not pre-programmed into the camera from the factory, you will need to use the Setup Tool to program them into the camera manually.
- Page 12 3G/4G models. Image From content will be included in MMS/email subject so the user will know where the image comes from. 10. SMS Status Response will allow the camera to send the user a response after it receives the user’s SMS command. Figure out the way of sending email encryption before make the choice...
- Page 13 Technical Specifications Picture Resolution 3MP/5MP/8MP/10MP/12MP 1080p 30fps,720p 30fps, WVGA (800*480 30fps) Video Resolution QVGA (320*240 30fps) Trigger Time 0.6s Lens FOV (Field of View) = 62 ° Night Illumination Infra Red or No Glow 2.0” LCD Display Screen Memory Card up to 32GB Trigger Motion (PIR) / Timer (Time Lapse)/SMS retrieve...
- Page 14 SMS Command Code List(wireless camera only) Add Phone *100#number# Phone number added Delete Phone *101#number# Phone number deleted Add Email *110#email# Email added Delete Email *111#email# Email deleted Send Via MMS *120#0# Send via MMS Send Via Internet *120#1# Send via Internet Send To Phone *130#0# Send to phone...
- Page 15 *190#0# // choose 640*480 Choose the wireless *190# *190#1# // choose 1280*960 image size *190#2# // choose original photo Camera Mode Photo *200#0# Set to photo mode Camera Mode Video *200#1# Set to video mode Photo+Video mode *200#2# Set to Photo+Video mode *202#0# PIR sensitivity high Set PIR Level to High...
- Page 16 Notes When install camera, it’s better to put it somewhere 1.5m above the ground, good for night time image and less false trigger. If you want to use the camera as a non wireless camera without SIM card, please make sure Send mode is off, SMS control is off. When reaches the Max Num, Sending will be stopped;...
